Producing PVC/uPVC windows and doors involves several processes, including profile cutting, milling, hardware preparation, welding and glazing bead cutting.
For a new workshop or an expanding window factory, the challenge is not simply buying individual machines. Each machine should match a specific production step.
Here are six common PVC/uPVC window making machines and what they actually do.

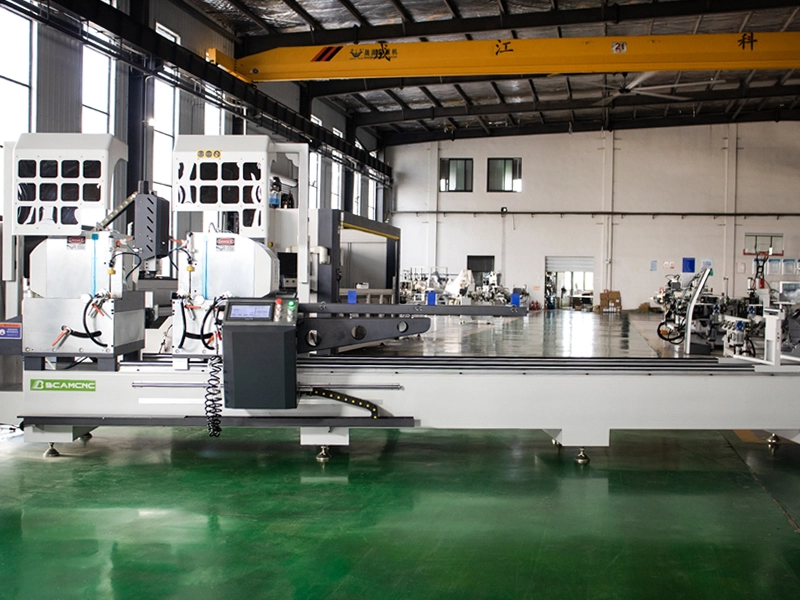

1. CNC Double HeadCutting Saw
Main Purpose: Profile Cutting
The CNC double head cutting saw is used to cut PVC/uPVC window and door profiles to the required length and angle.
It is commonly used for:
- Window frames and sashes
- Door frames
- Mullions and transoms
Accurate profile cutting is important because dimensional errors at this stage can affect later welding and assembly.
2. Four-Head Seamless Welding Machine
Main Purpose: Frame and Sash Welding
After cutting and preparation, PVC/uPVC profiles need to be joined into window frames or sashes.
A four-head welding machine can process multiple corners within one production cycle, making it suitable for batch window production.
A seamless welding configuration is intended to improve the appearance of welded corners and reduce subsequent finishing requirements, depending on the profile and process.

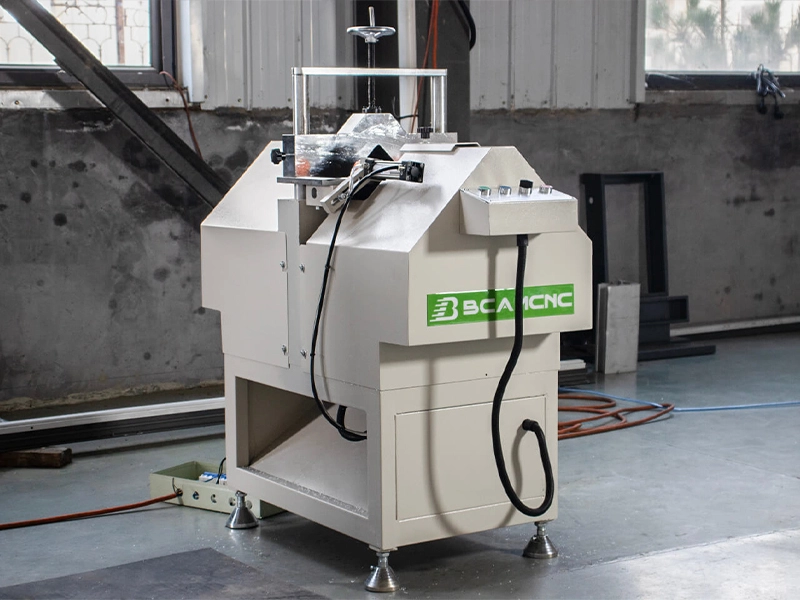

3. V-Cutting Saw
Main Purpose: V-Notch Cutting
A V-cutting saw is designed to create V-shaped cuts or notches at required positions on PVC/uPVC profiles.
Unlike a double head saw, it is not mainly used for cutting profiles to their final overall length. Instead, it performs a specialized preparation process for particular window structures and profile connections.
4. Glazing Bead Cutting Saw
Main Purpose: Glazing Bead Cutting
Glazing beads are used to secure glass inside a window or door frame.
A glazing bead cutting saw cuts these profiles to the required length and angle for installation.
Accurate cutting helps achieve better corner matching and makes glass assembly more efficient.

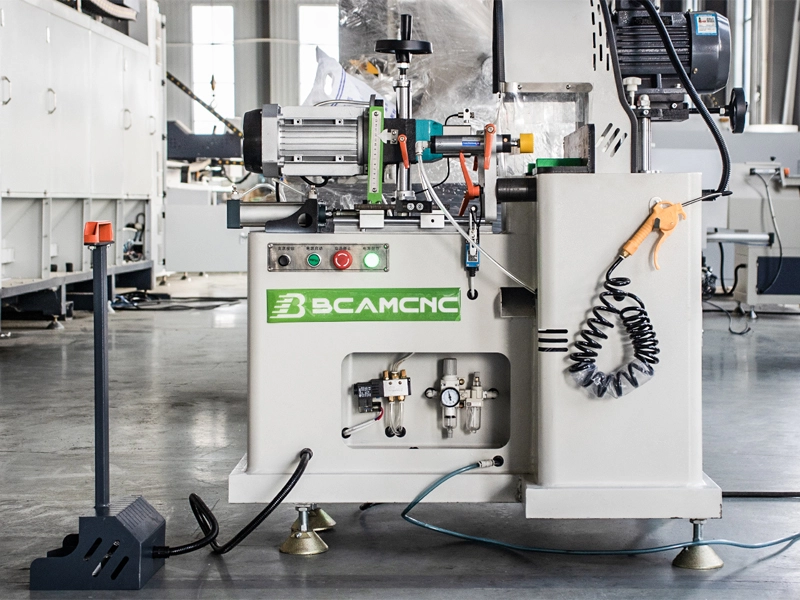

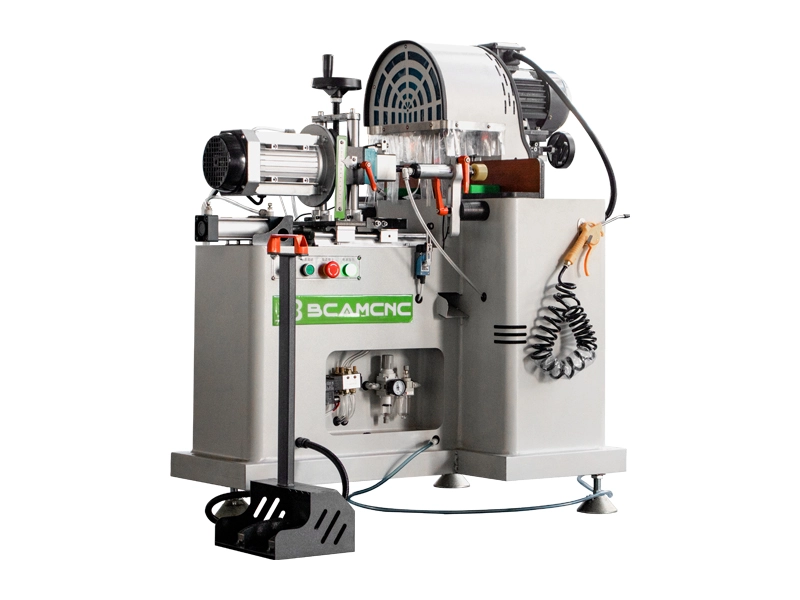

5. PVC/uPVC Profile End Milling Machine
Main Purpose: Profile End Machining
Some profiles, particularly mullions and transoms, require additional machining before assembly.
An end milling machine processes the end of the profile so that it can properly match and connect with another profile.
It is a specialized window-profile processing machine rather than a general-purpose CNC milling machine.
6. PVC/uPVC Window Lock Hole Machine
Main Purpose: Hardware Preparation
Windows and doors require locks, handles and other hardware.
A lock hole machine is used to prepare the relevant holes or slots in PVC/uPVC profiles according to the required hardware system and machine configuration.
This helps reduce manual profile processing before final assembly.
How Do These Machines Work Together?
A simplified PVC/uPVC window manufacturing process looks like this:
Profile Cutting → V-Cutting / End Milling / Lock Hole Machining → Frame Welding → Glass Installation → Glazing Bead Cutting → Hardware & Final Assembly
Each machine solves a different production requirement.
For example, the double head saw handles the primary profile cutting, while the glazing bead saw processes the smaller profiles used to secure the glass.
That is why building a window production line is not simply about choosing one cutting machine and one welding machine.
Do You Need All Six Machines?
Not every factory needs exactly the same configuration.
Before choosing PVC/uPVC window making machines, consider:
- Window and door types
- Profile system
- Production capacity
- Hardware requirements
- Level of automation required
A small workshop producing standard windows may need a simpler configuration, while a factory producing multiple window styles in larger volumes may benefit from more specialized equipment.
The production line should therefore be designed around the actual profiles and finished windows you plan to manufacture.
PVC/uPVC Window Making Solutions from BCAMCNC
BCAMCNC provides machinery for different stages of PVC/uPVC window and door production, including profile cutting, V-cutting, end milling, hardware preparation, welding and glazing bead cutting.
If you are planning a new PVC/uPVC window production line or upgrading an existing workshop, send us your profile type, window design and production requirements.
Our team can help evaluate which machines are suitable for your manufacturing process.
Frequently Asked Questions
What machines are needed to make PVC/uPVC windows?
Common equipment includes profile cutting saws, V-cutting machines, end milling machines, lock hole machines, welding machines and glazing bead cutting saws. The exact configuration depends on the window design and production requirements.
What is the difference between a double head saw and a glazing bead saw?
A double head saw cuts the main window and door profiles, while a glazing bead saw is specifically used to cut the smaller profiles that secure the glass.
Can these machines also manufacture aluminum windows?
Not necessarily. PVC/uPVC and aluminum window production may involve similar processes, but machine configurations and tooling requirements can differ.
