5 Axis CNC Router for Mold Making and Large Model Machining

Large Format Five Axis Machining for Master Models, Patterns and Mold Tooling

Last Updated: 2025-03-24

Large Working Envelope · Simultaneous Five Axis Machining · RTCP · Automatic Tool Changing

Machine large molds, master models, and industrial patterns in foam, tooling board, and suitable cured resin. The BCAMCNC DLP Series combines simultaneous five-axis machining, RTCP, and automatic tool changing for rough shaping, curved-surface finishing, and angled features. This large format 5 axis CNC router is configured around your part dimensions, material, and machining requirements.
SALE
Brand
- BCAMCNC
Model
- BCM40100DLP-5 Axis
Table Size
- 4M*10

Original price was: $149,000.00.Current price is: $145,000.00.

  • Supply – 360 Units in Stock Available for Sale Every Month
  • Quality  – CE Certified for Safety & Reliability
Warranty – Three-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Free Lifetime Technical Support for End-Users & Dealers
  • Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

Mold and Model Machining Samples

See examples of foam shaping, tooling board machining, and curved-surface finishing. Compare the material, geometry, and machining operation with your own project.

wind-turbine-blade-mold-5-axis-cnc-router cnc-router-5-axis-2.webp Large Model Rough Machining
Large Model Rough Machining 5 axis automotive mold

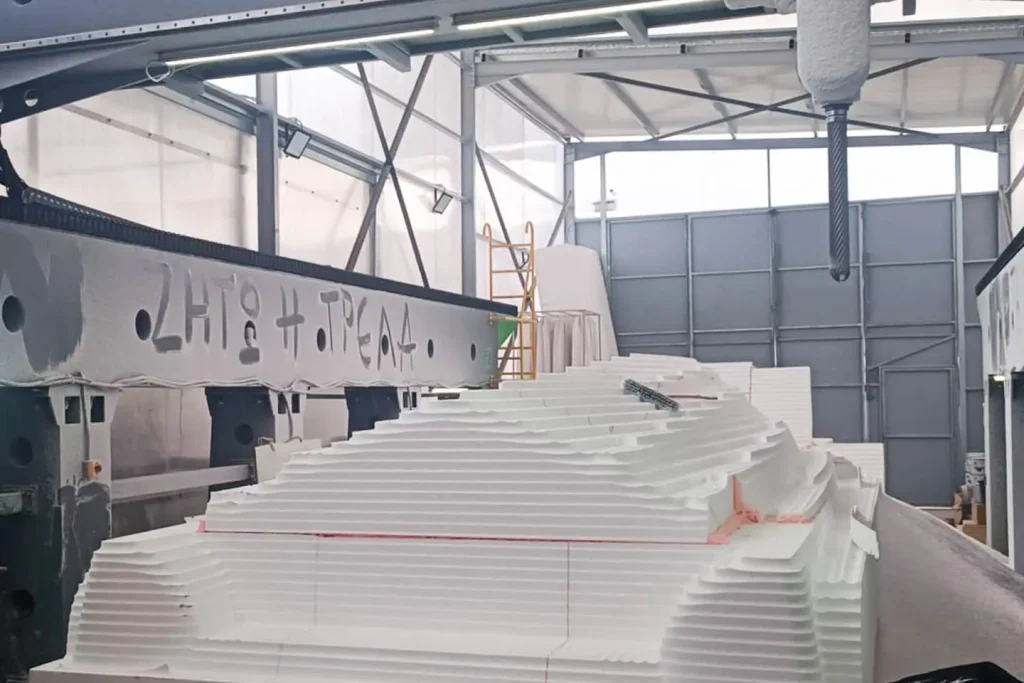

5 Axis CNC Router Foam Molds cnc-router-5-axis-2.webp Foam Model Rough Machining

Curved Surface Finishing

cnc-router-5-axis-1.webp BCAMCNC-Greece-Five-Axis-Angled-Cutting

Mold Making and Large Model Applications

Master Models and Industrial Patterns

Machine reference shapes used to produce subsequent molds. Applications include composite tooling patterns, industrial master models, and large three-dimensional prototypes.

Automotive Models and Tooling

Machine automotive master models, prototype forms, and suitable mold tooling, including curved surfaces, raised sections, and angled features.

Foundry Patterns and Foam Models

Produce patterns and foam forms for suitable casting workflows. Material selection, machining allowances, and surface requirements depend on the casting process.

Direct Mold Machining

Machine suitable tooling board and cured resin directly into mold surfaces. Unlike a master model used to create another mold, these parts serve as the tooling itself after the required surface preparation.

Five Axis Access for Complex Shapes and Taller Workpieces

Reach More Surfaces

Five-axis movement adjusts the tool approach to reach inclined walls, curved profiles, and features on different faces.

Reduce Repeated Clamping

Where geometry and tool access permit, compatible operations can be combined in one setup, reducing repositioning and alignment work.

Automatic Tool Changing and Coordinated Motion

Automatic tool changing supports roughing and finishing cutters within the same program. RTCP compensates for rotary-axis movement to maintain the programmed tool-center position relative to the workpiece.

Space for the Complete Setup

Machine selection accounts for the part, supports, fixtures, cutter length, and spindle-head movement. Workpiece height alone does not determine the required machining clearance.

DL Series Configuration for Mold and Model Production

Equipment Proposed Configuration
Machine series BCAMCNC DL Series
Five-axis machining Simultaneous movement with RTCP
Spindle HITECO spindle
CNC control Syntec control system
Axis drives Yaskawa servo system
Tool changing Automatic tool changer
Working dimensions Selected for the part, fixtures, and required tool access

Final configuration is confirmed after reviewing your material, part geometry, and machining requirements. The technical quotation lists working travel, spindle specifications, tool magazine capacity, and included accessories.

View DL Series Sizes, Specifications and Main Components

Customer Projects and Onsite Technical Support

Vietnam | BCM4025DLT | THACO AUTO

A DL Series project supporting automotive mold development, with technical assistance for machine setup and operator training.

BCAMCNC-Vietnam-Automotive-Mold-Service-Cover

View the Vietnam Customer Project

Bahrain | BCM2030DLT| Foam Machining

Installation, commissioning, and operator training supported the customer’s foam machining work, helping the team operate the equipment independently.

BCAMCNC-2030DL-5-Axis-CNC-Router-Bahrain-Service-Cover

View the Bahrain Customer Project

Materials for Large Molds, Master Models and Patterns

Material Typical Applications
EPS and PU foam Large models, patterns, and mold blanks
PU and epoxy tooling board Master models, detailed patterns, and tooling surfaces
Suitable cured resin Models, mold surfaces, and industrial tooling
Cured tooling paste Surface machining over prepared model structures

Material grade affects cutting conditions, achievable detail, and finishing requirements. Tools, fixtures, and chip or dust collection must suit the process.

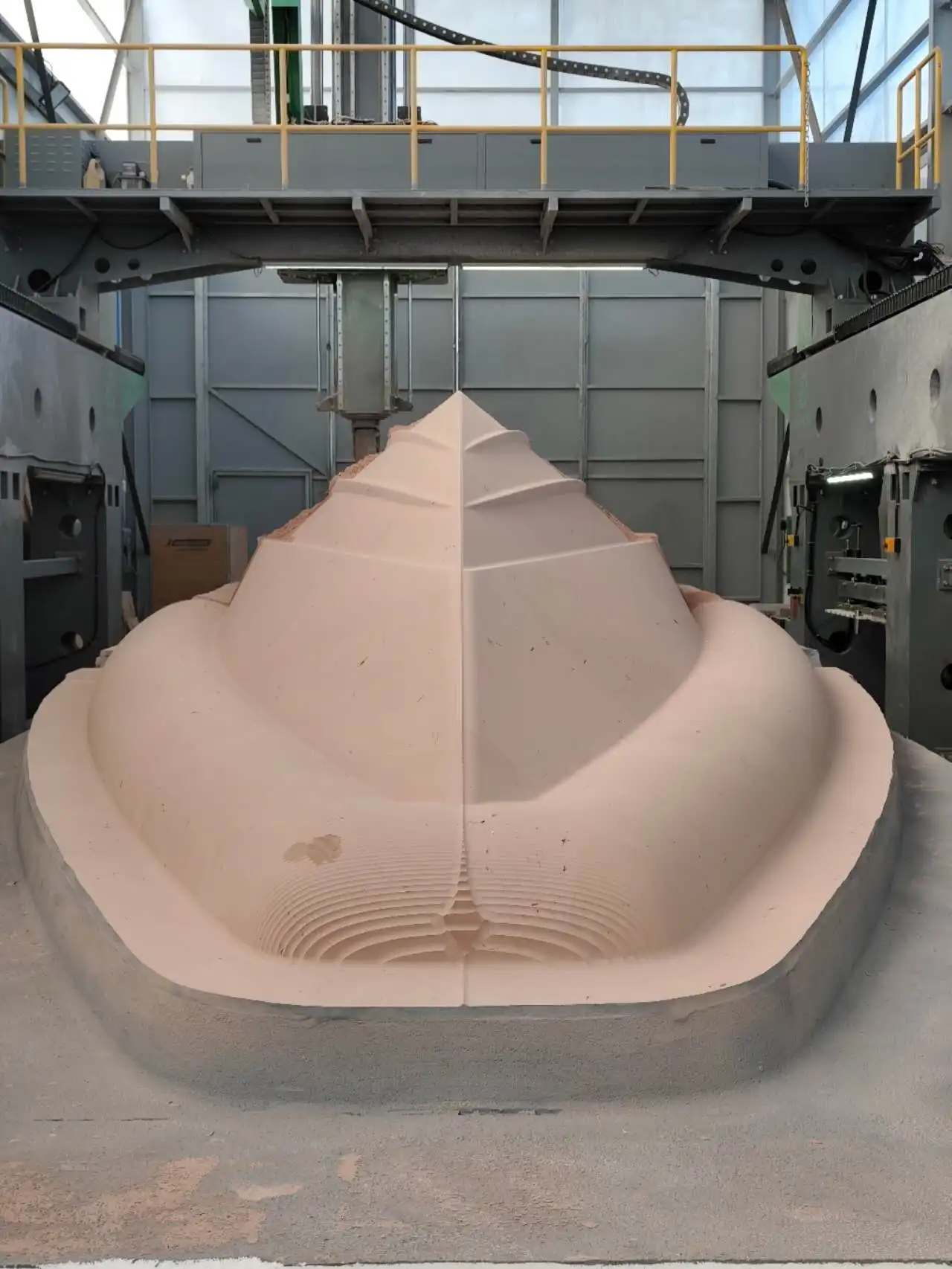

For hull and deck tooling, see our boat mold machining applications. For trimming formed composite parts, see our composite machining applications.

Select a Machine Around Your Part and Required Finish

To recommend a suitable configuration, we need three details:

  • Material: type, grade, and blank construction.
  • Maximum dimensions: length, width, and height, including supports.
  • Machining task: roughing, finishing, cavities, angled features, and required tolerances.

For sectional models, include section dimensions and alignment requirements.

No drawing is required for an initial enquiry. Photographs and approximate dimensions are enough to begin.

Installation, Training and Technical Support

BCAMCNC provides installation planning, commissioning, operator training, and technical support according to the agreed project scope.

Planning covers workshop layout, electrical supply, loading access, and supporting equipment. Training can include machine operation, setup, routine maintenance, and troubleshooting.

Common Questions About Five Axis Mold Making

Can the same machine perform roughing and finishing?

Yes, with suitable cutters, toolpaths, and a configuration matched to the material and required finish. Automatic tool changing supports transitions between these operations.

Can the machine reach deep cavities?

Access depends on cavity depth, opening, wall geometry, cutter length, and head clearance. CAD geometry helps assess whether the required surfaces can be reached.

Will the mold be ready to use after machining?

That depends on the material and molding process. Sealing, coating, sanding, or polishing may be needed to achieve the specified surface condition.

Is the DL Series suitable for steel injection mold machining?

The configuration presented here is intended for foam, tooling board, and resin machining. For steel injection molds, a dedicated metal-cutting machining center should be evaluated.

Can I use my existing CAD/CAM software?

It must support the required five-axis toolpaths and a suitable postprocessor for the selected machine and controller.

Get a Configuration and Quote for Your Mold Project

Looking for a 5 axis CNC router for mold making? Send your material, maximum part dimensions, and required operations. Include tolerances, surface requirements, and a drawing or photograph if available.

BCAMCNC will recommend a DL Series configuration with proposed specifications, equipment options, and pricing.

Get a Mold Making CNC Quote
