Models : BCM1325DL 5 AXIS
Application :Mould industry, decoration industry, furniture industry,Large metalloid moulds, building model,automotive foam mold, wooden ship model, rail wooden mold ,wooden model aviation, and wooden mold train
Leadtime : 45 working days
Certificate : CE ISO2015:9001
Voltage :380V
Customized :available
Warranty : 3 Years
Supply Ability : 10 set/months
Oversea Warehouse&Office : Dubai , Gernmany ,United Kingdom
- Advantage
- Details
- Specifications
- Videos
- Foot print
- Download
| 1.MATERIAL: Solid Wood , Aluminium ,Composite material ,Foam ,PVC,Granite、Marble、Limestone、Slate、Travertine、Basalt |
|---|
| 2. Constant Tip Speed Machining – Automatically varies the machine feed speed to allow the tip of tool to maintain a constant speed. This feature synchronizes the linear and rotary movements ensuring a constant and smooth cutting motion. |
| 3. Volumetric 3D Laser Compensation – This procedure is standard on all machines prior to shipment to our customers. This feature compensates for position errors within the three dimensional working envelope of the machine. |
4.Linear Compensation – This procedure is standard on all machines during the construction phase and compensates for inherent variances in components during machine construction. 5.Fixture Placement Compensation - Allows the user to mechanically locate three points on a fixture during initial program set up. These points are used as reference for our controller to automatically align the program to the new fixture location. 6.Tip Center Rotation - Allows for maintaining tool tip positioning when commanding a rotary axis to move in coordination with two or more linear axis. |
 |

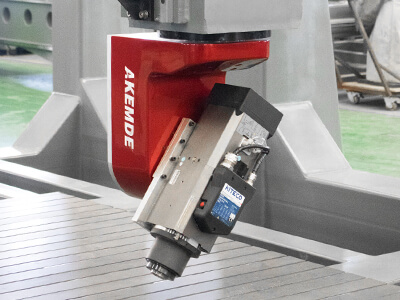

| 9.0kw Hiteco spindle + Oakmond 5-axis head. Japan YASKAWA 1300W servo/Z axis with brake, Xinbao reducer. |

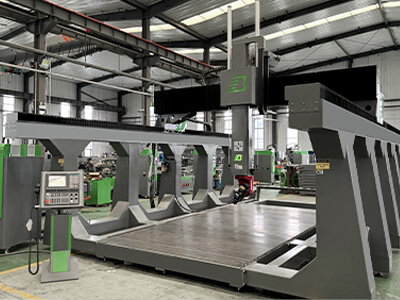

Heavy-duty welded frame bed, bed thickness is more than 8mm. Standard steel gantry, welded iron columns. |  |  |
 |

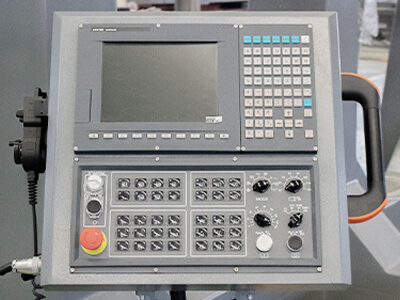

| New generation 610MA, English interface, new generation MPG handwheel, with RTCP function. |

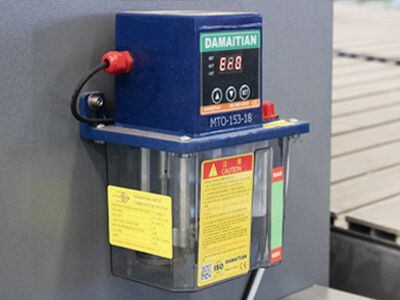

Automatic lubrication, lubricating oil label: Great Wall No. 32 hydraulic oil (white oil). | |  |
 |

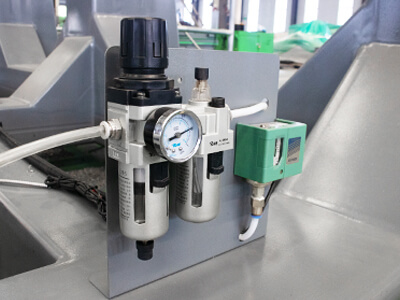

| Oil-water separator+Pressure switch. |

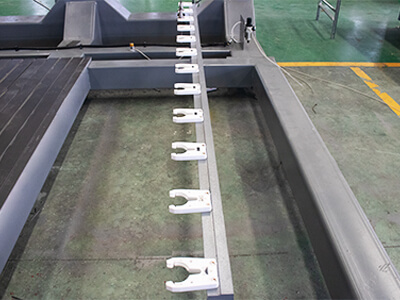

| Automatic tool setting instrument. 12-bit inline tool changer. | |  |

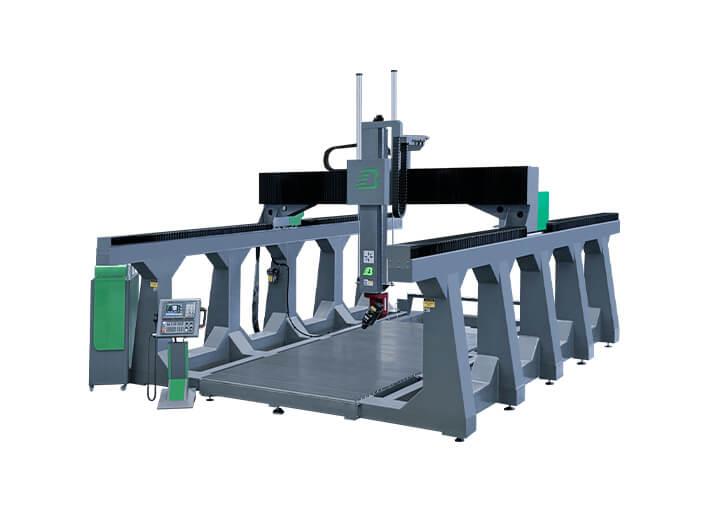

Ultra-large format BCM40100DL-5 Axis CNC Router Machine
| ● Working Table Size(mm):4000*10000*2100mm/customized |
|---|
| ● CE standard |
| ● Italy AC Axis +Italy hiteco 13.5KW air cooling spindle with 8 position Automatic Tool Changer(ISO30) |
| ● 20mm Heavy duty body(It can afford 3 tons ) |
| ● X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission |
| ● Taiwan Hiwin 35 rails |
| ● T-slot Table |
| ● Schneider Electronic spare parts |
| ● Automatic lubration system |
| ● Taiwan Syntec 5 axis Control System |
| ● Japan Omron limit switch |
| ● High Torque Leadshine stepper motor and drivers |
| ● Fuling Inverter 18kw |
| ● Tool height sensor |
| ● Standard box of tools |
| ● Tools cooling system |
| ● Solid Wood, PVC ,MDF,Foam,Aluminum 3D machining |
| Parameters | Standard Specifications BCM40100DL-5 AXIS CNC Router | |
|---|---|---|
| X,Y,Z Working Area | 4000*10000*2100mm | |
| Spindle Power | 13.5kw Italy HITECO air cooling | |
| X,Y,Z Traveling Positioning Accuracy | ±0.02/2000mm | |
| Table Surface | Vacuum table + T-solt table | |
| X,Y,Z Rail and Trasmission | X Y axis gear transmission, Z axis TaiwanTBI Ball Screw | |
| Max. Rapid Travel Rate | 90m/min | |
| Max. Working Speed | 70m/min | |
| Cutting thickness | According materials | |
| Spindle Speed | 6000-24000RPM | |
| Drive Motors | Japanese Yaskawa servo motor and drivers | |
| Working Voltage | AC380v/50HZ or 60HZ/3 phase | |
| Command Language | G Code | |
| Operating System | Taiwan Syntec control system | |
| Interface | USB | |
| Software Compatibility | Option:BCAMPro/VCarve/VCarve Pro/ArtCAM/UCANC | |
| Running Environment | Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
BCM DL Series 5-axis CNC routers for sale are designed to increase precision, speed, and versatility in your production process. Manufactured with state-of-the-art components and innovative technology, these 5-axis CNC routers are ideal for use in virtually any industrial production process.
Each 5-axis CNC router features five fully synchronized axes to meet even the most demanding production requirements, from routing to milling. Choose a twin moving table to boost productivity, or a single stationary table to free up floor space. These 3d router 5 axis vertical machining center machines easily handle substantial workloads, including large amounts of wood, plastic, aluminum, and corrugated materials. Additionally, these machines are ideal for manufacturing marine and automotive parts as well as molded product trimming on curved 3D 5 axis mill surfaces. Regardless of the model you choose, these 5-axis CNC machines will impress every time.
We can customized Any size for Customer requestion , if you have special request , you can eamil us , our Engineer team will design it for your request for free.
Our customer service agents and technical support team are available seven days a week to assist you. Our team of trained professionals can assist you through operator training, technical direction, and on-site support.
