Models : BCM1325A-Plus

Application :SignMaking,Woodworking,letter Cutting,door making, furniture making,Electronic industry

Leadtime : 5-7days

Certificate : CE,ISO

Voltage :220V/1P/50HZ,380V/3P/50HZ,

Customized :Size Can be customized

Warranty : 2 years

Supply Ability : 50 Sets/Month

Oversea Warehouse&Office : Dubai

E-mail: admin@bcamcnc.com

ACCESSORY

Advantage
Details
Specifications
Videos
Foot print
Download

▄ BCM A-Plus SERIES A low-cost, entry level BCAM CNC Router
▄ High-quality components
▄ International sales and service(7*24h)
▄ Ideal for small shops or first-time CNC users
▄ Primary Applications: Signmaking, General Woodworking, Exhibition Stands, Point of Purchase, Scenery & Sets, Solid Surface, Interiors, Foam Packaging

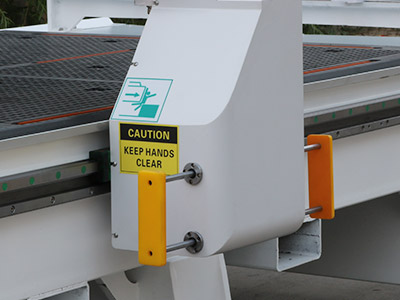

		Safety protection system: BCM1325A-Plus router inherits the safety protection system unique to BCAM products and provides external emergency stop function for equipment users. This function can protect effectively the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.

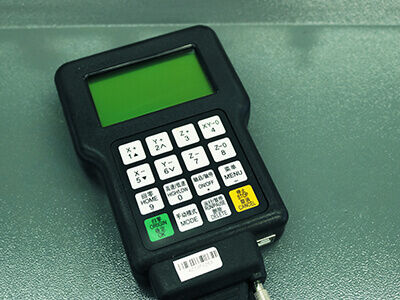

Control system:BCM1325A-Plus router control system is famous DSP A11 which is simple and easy to operate, the system has a wide range of support documents, power-off continuous carving, 2D 3D relief and other functions, easy to operate, widely used.

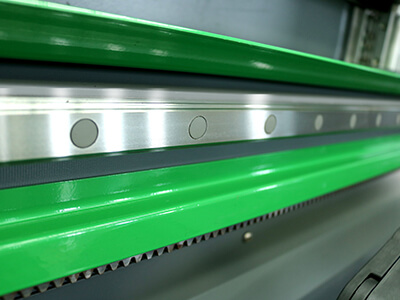

		Rail device:BCM1325A-Plus router rail system adopts Taiwan's HIWIN high-quality rail. This guide rail makes BCM1325A-Plus work more accurately. The high quality pulley quality and excellent dustproof system also make BCAMCNC equipment last longer.

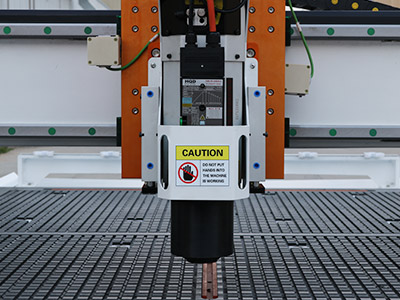

Spindle system:BCM1325A-Plus router selects Italian HSD air-cooling spindle, power range: 3.0KW-7.5KW.Tools change hoose from manual, quick-release, high-power and high-speed spindles for optimum processing of rigid sheet materials.

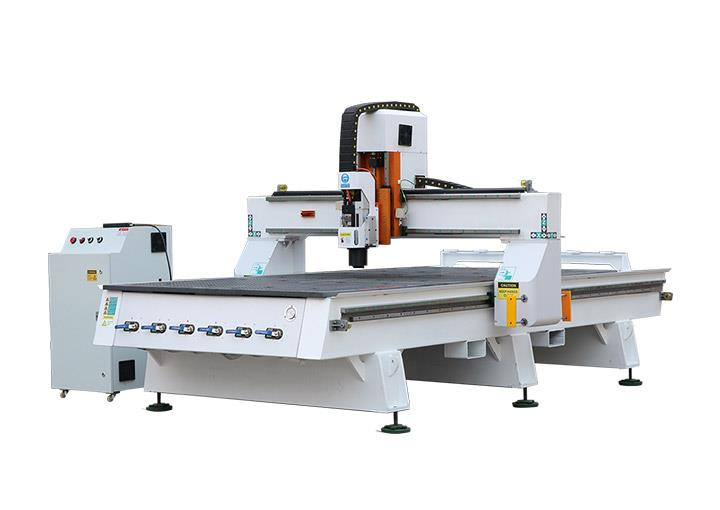

BCM1325A-Plus Entry level CNC Router for Woodworking and Signmaking

● Working area: 13002500200mm\|4′*8′
● CE standard
● 3.0kw water cooling spindle(Option: 5.5kw,6.0kw ,7.5kw Quick-Release Spindle)
● Heavy duty frame
● Active safety system
● X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
● Taiwan Hiwin 20 rails
● Vacuum table+T-solt
● Schneider Electronic spare parts
● Lubrication system
● Rich auto A11 control system
● Japan Omron limit switch
● High torque stepper motor and drivers
● Chinese fuling Inverter 3.7kw
● 3.0kw double dust collector +Dust collector pipe+Dust collector support
● Tool height sensor
● Standard box of tools
● Delivery time : 5-7working days for all standard specs BCM1325A plus after got payment

Parameters		Standard Specifications BCM1325A Plus
X,Y,Z Working Area		13002500200mm\|4*8ft

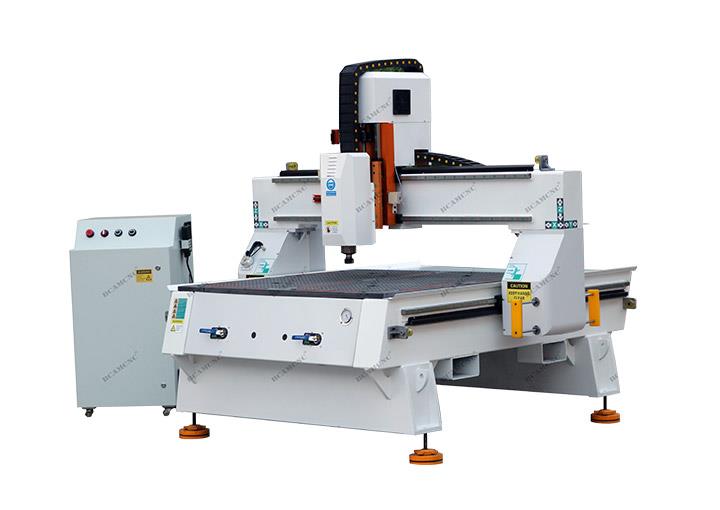

Optional Working Area		13001300200mm\|4*4ft
Optional Working Area		15003000200mm\|5*10ft
Optional Working Area		20003000200mm\|6*10ft
Optional Working Area		20004000200mm\|6*13ft
Optional Working Area		20006000200mm\|6*20ftth>
Spindle Power		3.0kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy		0.05/2000mm
Table Surface		Vacuum table+T-solt table
X,Y,Z Rail and Trasmission		X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate		30m/min
Max. Working Speed		25m/min
Cutting thickness		According materials
Spindle Speed		6000-24000RPM
Drive Motors		Leadshine stepper motor and drivers
Working Voltage		380V(220v)/3 phase/28amp or 220v/ Single Phase/32amp
Command Language		G Code
Operating System		Richauto A11 DSP control system
Interface		USB
Software Compatibility		Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment		Temperature: 0℃~45℃ Relative Humidity: 5%~75%

What materials can a CNC Router process? A BCAM CNC router can machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: ►Soft metals / Non-ferrous metals ►Brass ►Aluminium ►Titanium ►Noble metals such as silver, gold ►Wood ►Multiplex ►Plastics ►Acrylic glass Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers. What criteria are decisive when buying a BCAM CNC Router? If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?” ►The size Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine. ►The motor and its performance Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you. ►Hardness and toughness of the material Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed. ►Precision A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results. With these four questions I quickly find out which CNC Router is suitable for my needs: 1.What size are my workpieces to be processed? 2.What engine power do I need for my hard / soft material? 3.How hard are the materials to be processed concerning the required torsional stiffness of the machine? 4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?

What materials can a CNC Router process?
A BCAM CNC router can machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
►Soft metals / Non-ferrous metals
►Brass
►Aluminium
►Titanium
►Noble metals such as silver, gold
►Wood
►Multiplex
►Plastics
►Acrylic glass
Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
What criteria are decisive when buying a BCAM CNC Router?
If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?”
►The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
►The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
►Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
►Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
