Models :  BCF506,BCF501

Application :Panel Furniture, Woodworking

Leadtime : 8-12days

Certificate : CE, ISO

Voltage :380V/3P/50HZ,220V/1P/50HZ

Customized :Size can be customized

Warranty : 2 years

Supply Ability : 50 Sets/Month

Oversea Warehouse&Office : Dubai,Wittingen Germany, Birmingham UK

E-mail: admin@bcamcnc.com
ACCESSORY
  • Advantage
  • Details
  • Specifications
  • Videos
  • Foot print
  • Download

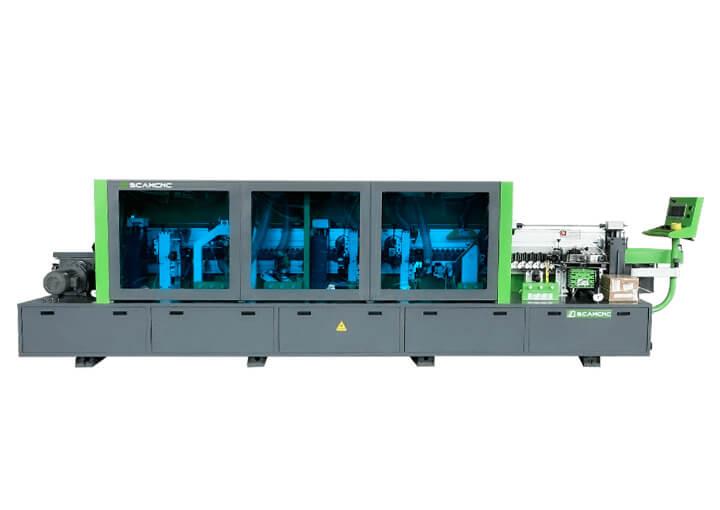

AUTOMATIC SINGLE-SIDED EDGEBANDING MACHINES
1. LOW INVESTMENT, LONG TERM RELIABILIT

2. BUILT ACCORDING TO THE SPECIFIC PRODUCTION REQUIREMENTS

3.PERFECT FINISHES WITH EVERY TYPE OF PROCESS  AND TOP QUALITY FINISHED


4GROUND-BREAKING TECHNOLOGY, FOR TOP PERFORMANCE




edge banding system.jpg

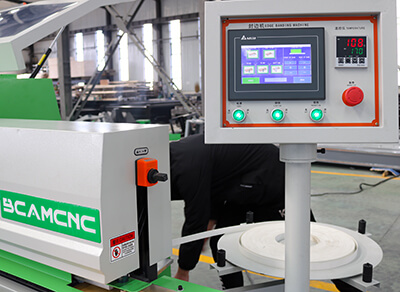

Delta touch screen

The machine  is with 6 functions as follows gluing  ,end trimming ,rough trimming fine trimming ,scraping,buffing .

And since it is physical scraping ,therefore there are five functions on the screen , so

scraping function is not shown on the screen.



The band disc

It could handle up to 20kg weight ,the band could be 0.4mm-3mm thick


aps_adv00.jpgedge banding machine03.jpg



glue box.png


1. Gluing

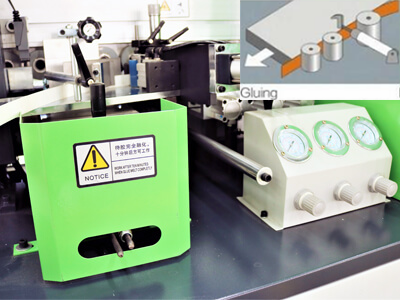

Gluing Make the edge-banding board and the edge banding material evenly coated on both sides to ensure stronger adhesion




2.End Cutting

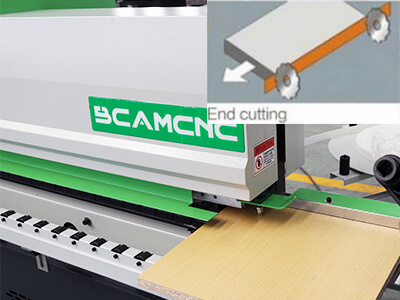

 Through the precise linear guide rail movement, the automatic tracking by the die and highfrequency high-speed motor cutting structure are adopted to ensure smooth and smooth cutting surface

aps_adv00.jpgend cutting.jpg



Rough trimming ..jpg


3.Rough trimming

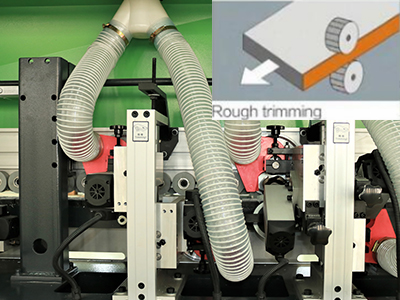

 The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate.




4.Fine trimming

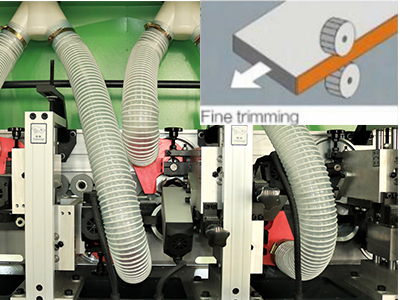

 The structure of automatic profiling and high-frequency high-speed motor is adopted to ensure the smoothness of the upper and lower parts of the trimmed plate. It is used to repair and process the excess edge banding material above and below the edge band of the plate

aps_adv00.jpgfine trimming ..jpg





5.Scraping

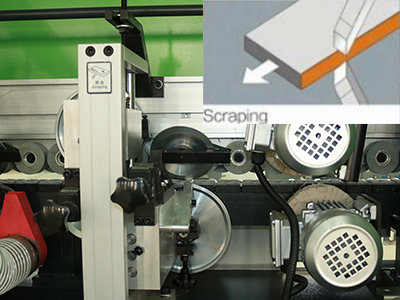

 It is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of the trimming, so that the upper and lower parts of the plate are smoother and cleaner




6.Buffing

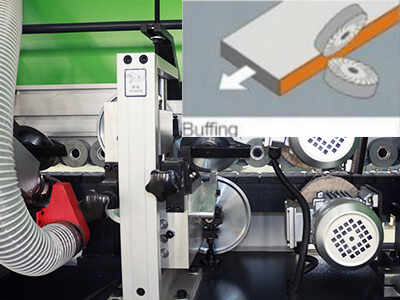

 Use a cotton polishing wheel to clean the processed plates, and polish the edge-sealing end surface smoother.

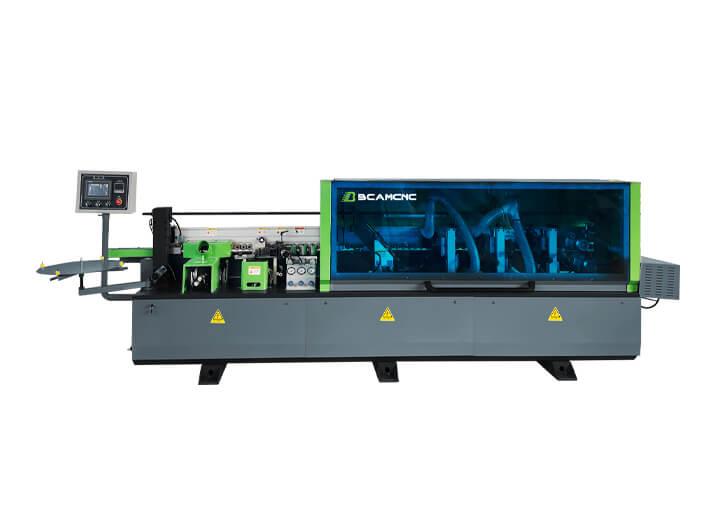

BCF506 Egde Banding machine

●  Overall Size: 4500*1000*1600mm
●  CE standard
●  Panel Height 10-60mm 0.39-2.36inch
●  Thickness of Edge banding Materaialin rolls/Strips 0.4-3/8mm  0.55-2.51inch
●  Panel Protrusion from Track 25mm   0.95inch
●   Min Panel Lenth 150mm   5.9inch
●  Min Panel Width (With length 150mm )  85mm   3.34inch
●  Min panel width (with length 250mm ) 50mm  1.96inch
●  CNC PC Control system
●  Track Feed speed  12m/mins   39.37ft/mins
●  Pneumatic connection   7 Bar
●  Glue Pot capacity ( Approx )  2kg
●  Glue pot Heating tine at 1/2 load ( approx )   20 minutes
●  With Pre-milling Unit    8kw
●  With Pre-milling&Corner rounding unit   10kw
●  Machine Total power 16kw ( 380v/50hz/3p )
Parameters
BCF506
Edge thinkness
0.4-3mm
Feed speed
12-20m/min
Panel thickness

10-60mm
Panel Length
>=150mm
Panel width
>=60mm
End cutting motor
0.55kw*2@18000rpm
Rough trimming motor
0.75kw*2@18000rpm
Fine trimming motor
0.75kw*2@18000rpm
Buffing motor
0.18kw*2@18000rpm
Total motor power
16kw
Max. Rapid Travel Rate
30m/min
Max. Working Speed
20m/min
Working Pressure
0.8Mpa
Netweight
2700kg

What materials can a CNC Router process?

THE MARKET DEMANDS a change in manufacturing processes that enables companies to accept the largest possible number of orders. This is coupled with the need to maintain high quality standards whilst offering product customisation with quick and defined delivery times, as well as responding to the needs of highly creative designers.

LOW INVESTMENT, LONG TERM RELIABILITY

BCAM RESPONDS with technological solutions that highlight and support technical expertise as well as process and material knowledge. BCF506 is a range of automatic single-sided edgebanding machines purposely created for craftsmen and companies looking for user-friendly, customised production and flexible solutions in a limited space.

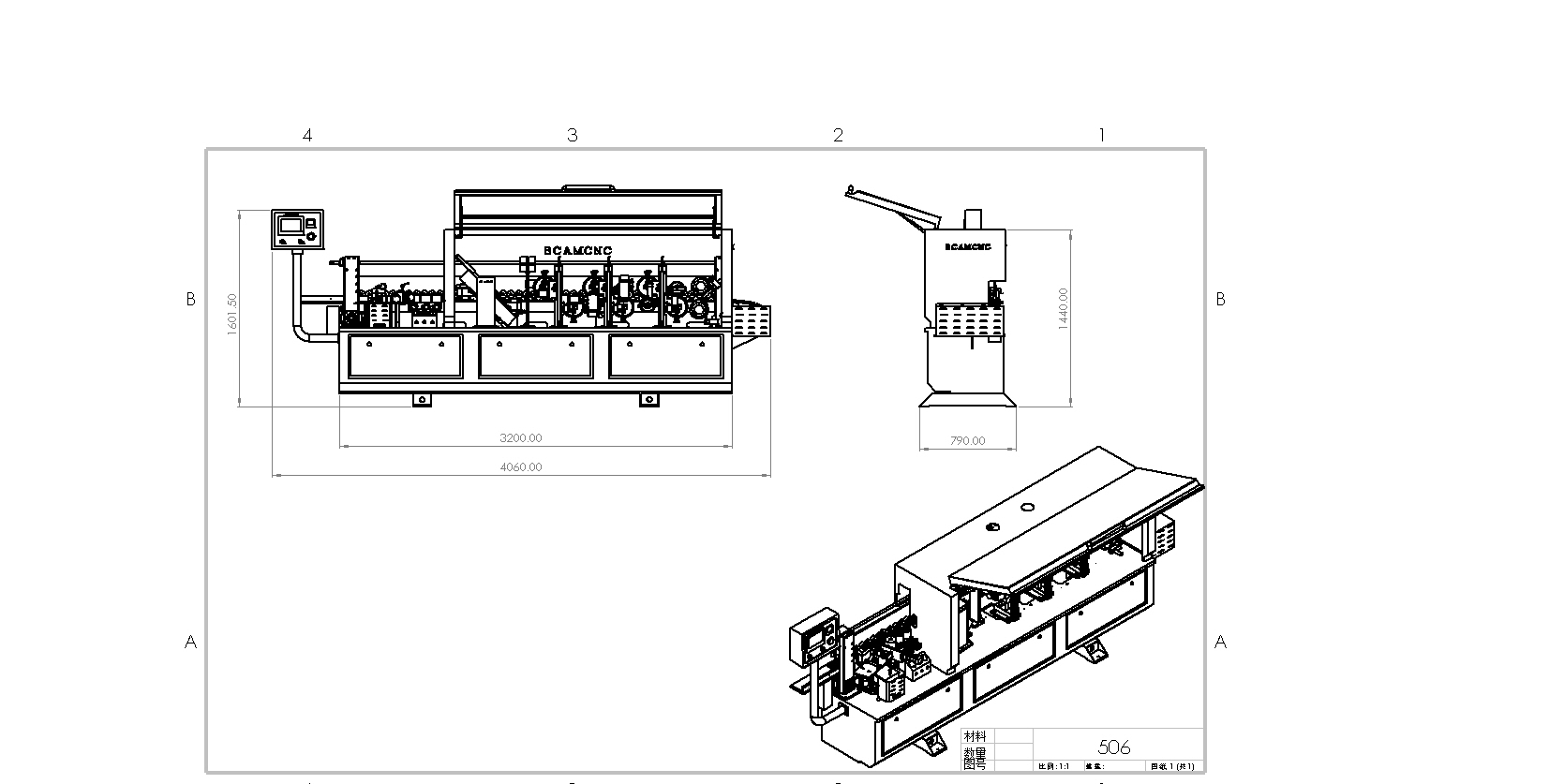

Foot Print BCF506.jpg

  • File Name Type Download
  • BCAM Edge Banding BCM506 pdf
