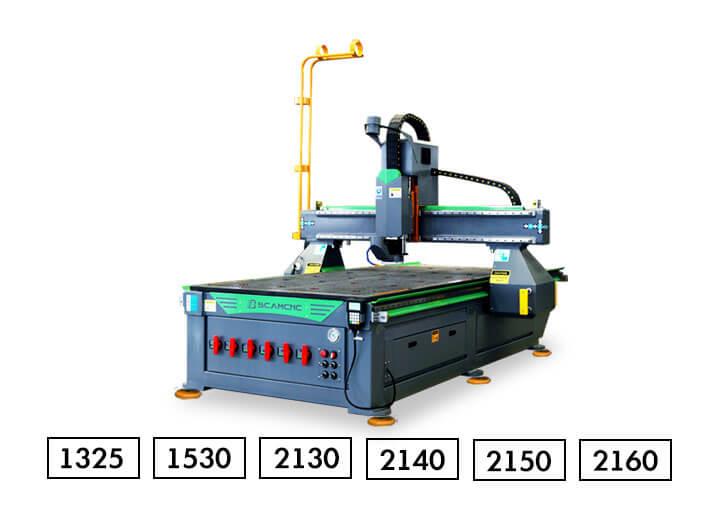

Models : BCM1325S/BCM1530S/BCM2030S/BCM2040S

Application :General woodworking,PLASTIC FABRICATION,ALUMINUM & METAL COMPOSITE CLADDING,signMaking

Leadtime : 5-7days

Certificate : CE,ISO9001,TUV,SGS

Voltage :220V/1P/50HZ,380V/3P/50HZ,220V/1P/50HZ

Customized :Size Can be customized

Warranty : 3 years

Supply Ability : 60Sets/Month

Oversea Warehouse&Office : Dubai,Wittingen Germany, Birmingham UK

E-mail: admin@bcamcnc.com

ACCESSORY

Advantage
Details
Specifications
Videos
Foot print
Download

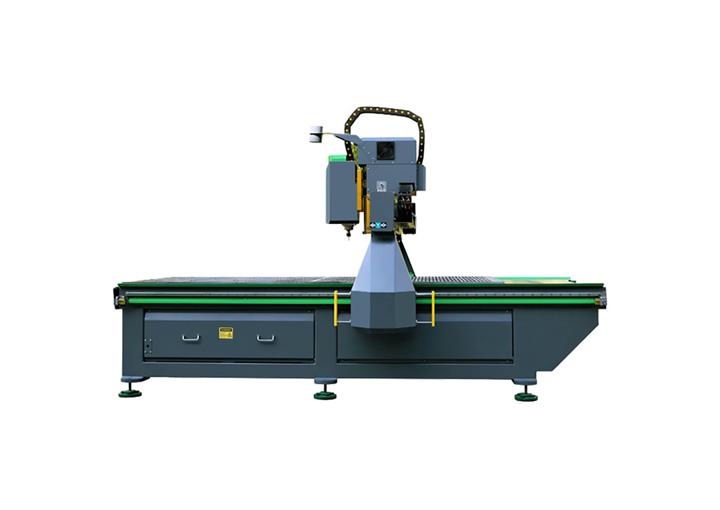

▄ The BCAM S Series 4x8 CNC Router is designed for smaller sized businesses or shops but still offers the same great performance you expect from BCAM. Due to our highly effective engineering and manufacturing processes, the S Series offers maximum versatility and can easily be integrated into existing workflows.

▄ Constructed from a single-piece-welded steel frame along with an aircraft-quality aluminum gantry, the BCAM also features cast gantry supports which greatly dampen vibrations. Each axis of this CNC Router features helical racks to provide smooth motion and tight control for precise and quality cutting.

▄ An all-new knife system which offers both oscillating and non-oscillating capabilities is standard on the BCAM CNC Router along with an optional second knife system.Depending on an end-users application, spindle options range from 4 to 10 HP.

▄ Designed to cut a multitude of materials such as composite material, foam, plastic, wood, and much more the BCAM CNC Router is dependable and built to last. With many locations across the globe, service and support are always nearby and ready to help.

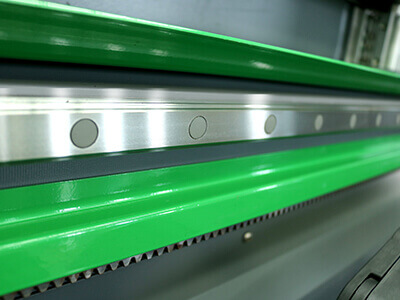

TaiWan HIWIN Spec Precision Linear Guide Rail for smooth motion and high accuracy.

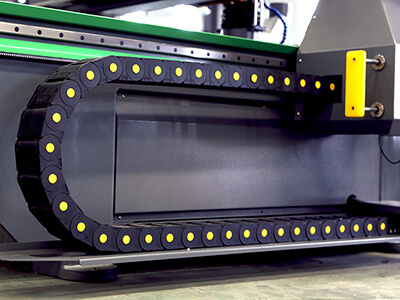

		Tensioned Roller chain on the gantry to reduce racking and improve accuracy.

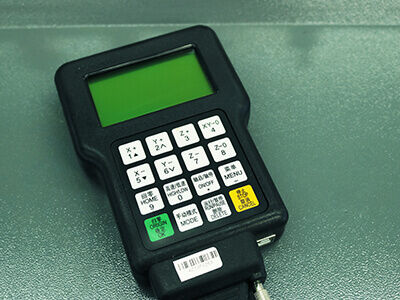

March3 March4(Ethernet Controller), Weihong DSP controller, Richauto A11 DSP controller, Taiwan Syntec, NC-Studio 53C, 95A, also with Wifi controller.

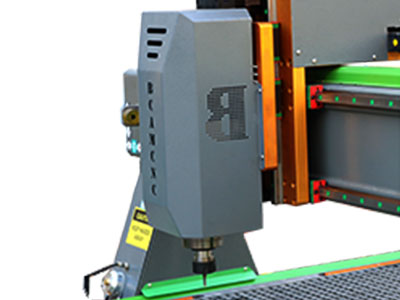

		Comes with 3.0kW Spindle and Inverter with water-cooling system. 110V or 220V or 380V available.

Standard Size 4' x 8'. We can alter the machine to fit custom lengths on X and Y axis travel. Get the cutting area you really need.

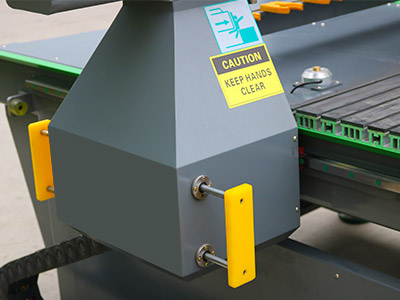

		The original active protection system, also known as the “anticollision emergency stop switch”, has active protection for workers’ safety during the working process of the machine. At the same time, it has a system to automatically save thebreakpoint, and after the alarm is manually released, the engraving machine can continue to work

The country's first dust-free vacuum system is inspired by the “Typhoon” cyclone. Our French engineer, Mr Ness, studied this technology for three years and finally developed it successfully which has been perfectly applied into our products, which is now a BCAM patent courtesy of our French engineer. After the improvement by Mike, our Design Director, it has been applied to our S, C, D and E series equipment. The beautiful design and excellent performance have won praise from many customers. More and more customers have seen the revolutionary vacuum design in the industry, and some of them traveled from far to purchase BCAM engraving machines.

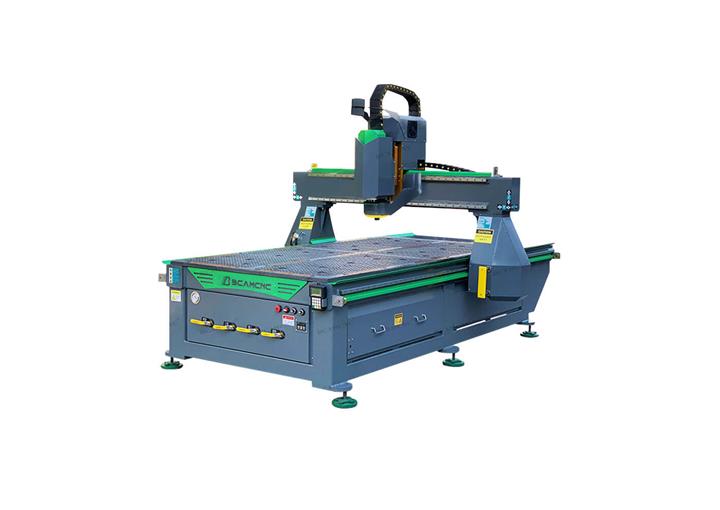

BCM S Series Proffesional CNC Router for Woodworking and Signmaking

● Working area: 13002500200mm\|4′*8′
● CE standard
● 3.0kw water cooling spindle(Option: 5.5kw,6.0kw ,7.5kw Quick-Release Spindle)
● 8mm Heavy duty frame
● Active protection safety system
● X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
● Taiwan TBI High precision 25 rails
● Vacuum table+T-solt
● Schneider Electronic spare parts
● Automatic lubrication system
● Rich auto A11 control system
● Japan Omron limit switch
● High torque stepper motor and drivers
● Taiwan Delta Inverter 3.7kw
● 3.0kw double dust collector +Dust collector pipe+Dust collector support+Airtech Pro
● Tool height sensor
● Industrial water Chiller CW3000 (Optional)
● Airtech pro Dust-free extraction hood
● Standard box of tools

Parameters		S Serie cnc router 4x8 cnc BCM1325S Plus
X,Y,Z Working Area		13002500200mm\|4*8ft
Optional Working Area		13001300200mm\|4*4ft
Optional Working Area		15003000200mm\|5*10ft
Optional Working Area		20003000200mm\|6*10ft
Optional Working Area		20004000200mm\|6*13ft
Optional Working Area		20006000200mm\|6*20ftth>
Spindle Power		3.0kw water cooling spindle
X,Y,Z Traveling Positioning Accuracy		0.01/2000mm

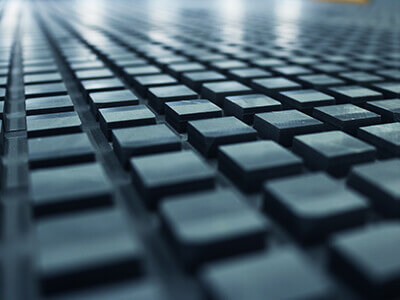

Table Surface		Vacuum table+T-solt table
X,Y,Z Rail and Trasmission		X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate		40m/min
Max. Working Speed		30m/min
Cutting thickness		According materials
Spindle Speed		6000-24000RPM
Drive Motors		4 sets High Torque stepper motor and drivers
Working Voltage		AC220v0r380v/50HZ/3 phase,220v/1phase/50hz
Command Language		G Code
Operating System		Richauto A11 DSP control system
Interface		USB
Software Compatibility		Option:Type3/Ucancam/Alphacam/Solidworks,etc.
Running Environment		Temperature: 0℃~45℃ Relative Humidity: 30%~75%

What materials can a CNC Router process? A BCAM CNC router can machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: ►Soft metals / Non-ferrous metals ►Brass ►Aluminium ►Titanium ►Noble metals such as silver, gold ►Wood ►Multiplex ►Plastics ►Acrylic glass ►Granite and marble Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers. What criteria are decisive when buying a BCAM CNC Router? If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?” ►The size Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine. ►The motor and its performance Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you. ►Hardness and toughness of the material Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed. ►Precision A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results. With these four questions I quickly find out which CNC Router is suitable for my needs: 1.What size are my workpieces to be processed? 2.What engine power do I need for my hard / soft material? 3.How hard are the materials to be processed concerning the required torsional stiffness of the machine? 4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?

What materials can a CNC Router process?
A BCAM CNC router can machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
►Soft metals / Non-ferrous metals
►Brass
►Aluminium
►Titanium
►Noble metals such as silver, gold
►Wood
►Multiplex
►Plastics
►Acrylic glass
►Granite and marble
Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
What criteria are decisive when buying a BCAM CNC Router? If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?”
►The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
►The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
►Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
►Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
