Models : CA Series

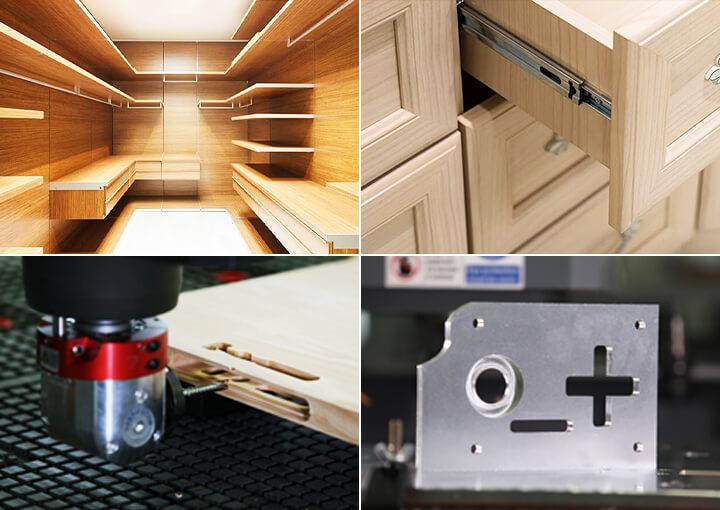

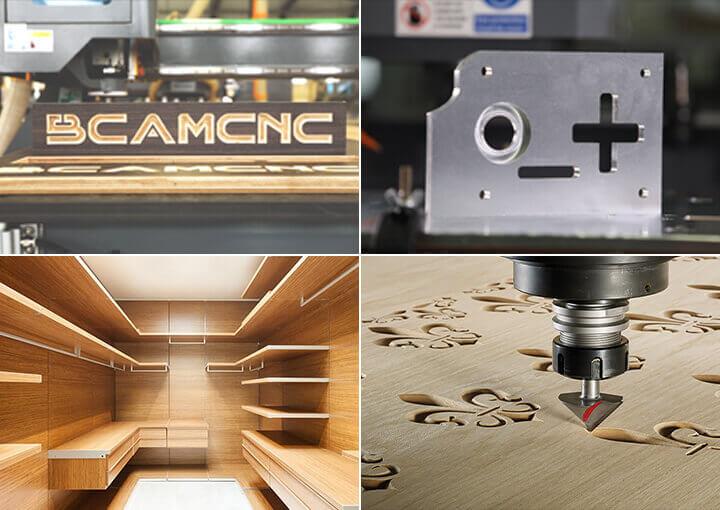

Application :Panel Funiture,Wood&Wood based materials,Plastic&Non ferrous Metarials

Leadtime : 15-20days

Certificate : CE,ISO

Voltage :380V/3P/50HZ,220V/1P/50HZ

Customized :Size Can be customized

Warranty : 3 years

Supply Ability : 10 Sets/Month

Oversea Warehouse&Office : Dubai,Wittingen Germany, Birmingham UK

E-mail: admin@bcamcnc.com

ACCESSORY

Advantage
Details
Specifications
Videos
Foot print
Download

▄ The quality of every BCAM Linear ATC CNC router is excellent. Every BCAM CA series CNC router carries a full year warranty and our great technical team support! You will find out many advantages after you have used our CNC router. If you are a small and middle shop our CNC router is a best choice for you. Our goal is offer you more and cost you less!

▄ High-performance all-round machinery cnc router table for sale with extraordinary value, but at a very economical price. With linear tool changer, constructed with world-class components, consistent high performance.

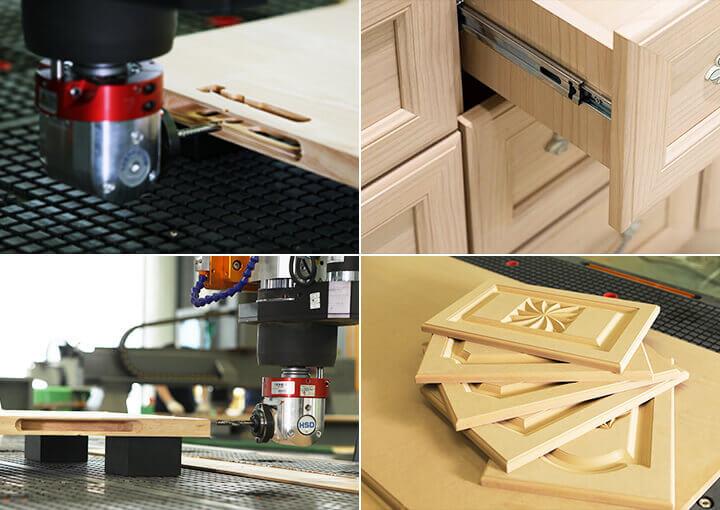

▄ An ATC best cnc machine reduces production time by automatically changing cutters between tool paths, thus eliminating the need for the CNC operator to change and zero tools individually. The ATC cnc router milling machine allows the BCAMCNC cnc router to do the full job, even when different tooling is required to make different types of cuts – like cabinets and furniture – or where different bits are needed for roughing and finishing passes – like signs and complex 3D carvings. A 4x8 cnc router with vacuum table machine equipped with an ATC cnc router 1325 can perform operations normally done on other pieces of equipment, eliminating the need for additional machines in the shop.

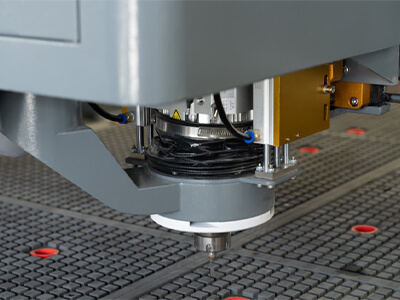

		HQD 9KW(12HP) Electro spindle with 8-position Automatic Tool Changer(ISO30)

Automatic tool setting instrument

		Vacuum table using high-density (1.3-1.45g/cm) material with great suction strength, comfortably accommodating all sizes of work piece.

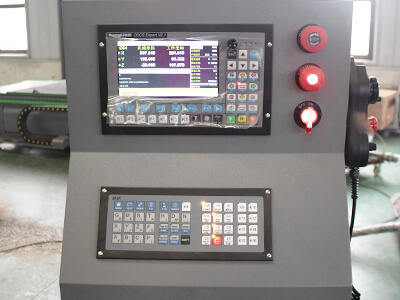

DDCNC controllerenabling this product toaccomplish multi-layer 3Djob, cutting, engraving,milling, all at ease.

		Auto lubricating system, one touch can finish periodic maintenance easily.

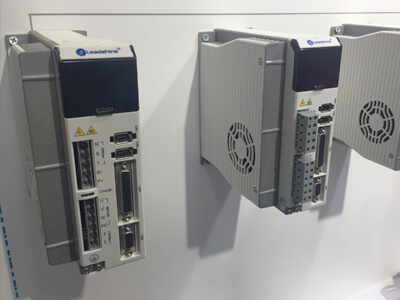

world-class ChinaLeadshine servo motor and driving system ensures machine to run with fast speed and low noise.

		Unique auto tool changer system can change tools alternatively, tool sensor to compensate the tolerance of tool length.

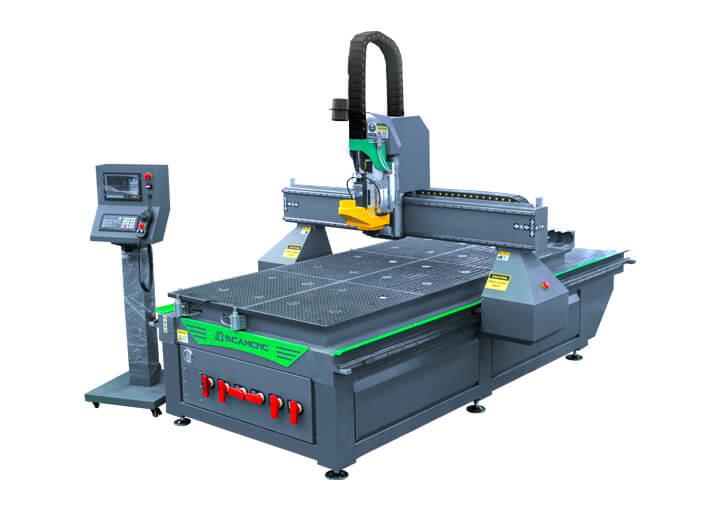

BCM CA Series CNC Router with Linear Automatic tools change

● Working area: 13002500200mm\|4′*8′
● CE standard
● China HQD 9KW Electrospindle with 8-position Automatic Tool Changer(ISO30)
● 10mm Heavy duty body
● Active protection safety system
● Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
● 25mm Heavy-duty Hiwin HG Series linear bearing
● Vacuum table+T-solt
● DDCNC system
● Leadshine 750W servo motor and drivers system
● 8 Position Automatic Tool Changer
● Tool Cone Holder-for east bit changing
● Solid State limit switches
● 3 Years Warranty

Parameters		CNC Router with Automatic tools change BCM1325CA
X,Y,Z Working Area		13002500200mm\|4′*8′
Optional Working Area		13001300200mm\|4*4ft
Spindle Power		9kw air cooling spindle/HQD
X,Y,Z Traveling Positioning Accuracy		0.02/2000mm
Table Surface		Intergrated vacuum + T-solt table clamping System
X,Y,Z Rail and Trasmission		X Y axis gear transmission, Z axis Ball Screw
Max. Rapid Travel Rate		80m/min
Max. Working Speed		60m/min
Cutting thickness		According materials
Spindle Speed		6000-24000RPM
Drive Motors		AC220v/380v/50/60HZ/1/3 phase
Command Language		G Code
Interface		USB
Running Environment		Temperature: -20℃~45℃ Relative Humidity: 5%~75%
Operating System		China DDCNC control system

What materials can a CNC Router process? A BCAM CNC router can wood cnc machine a lot of different materials. Here listed just a few materials that can be machined 2D or 3D: ►Soft metals / Non-ferrous metals ►Brass ►Aluminium ►Titanium ►Noble metals such as silver, gold ►Wood ►Multiplex ►Plastics ►Acrylic glass ►Granite and marble Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers. What criteria are decisive when buying a BCAM CNC Router? If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?” ►The size Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine. ►The motor and its performance Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you. ►Hardness and toughness of the material Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed. ►Precision A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results. With these four questions I quickly find out which CNC Router is suitable for my needs: 1.What size are my workpieces to be processed? 2.What engine power do I need for my hard / soft material? 3.How hard are the materials to be processed concerning the required torsional stiffness of the machine? 4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?

What materials can a CNC Router process?
A BCAM CNC router can wood cnc machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
►Soft metals / Non-ferrous metals
►Brass
►Aluminium
►Titanium
►Noble metals such as silver, gold
►Wood
►Multiplex
►Plastics
►Acrylic glass
►Granite and marble
Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
What criteria are decisive when buying a BCAM CNC Router?
If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?”
►The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
►The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
►Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
►Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
