Models : BCJ1390

Application :signmaking, craft making,clothes industry,shoes making,wood, acrylic, leather, paper,plexiglass ,granite,fabric ,PVC

Leadtime : 7 working days

Certificate : CE FDA

Voltage :220v

Customized :yes

Warranty : 12 months

Supply Ability : 180 sets/ month

Oversea Warehouse&Office : Dubai , Gernmany ,United Kingdom

E-mail: admin@bcamcnc.com

ACCESSORY

Advantage
Details
Specifications
Videos
Foot print
Download

1/With BCAM laser machines, you can laser-cut, engrave or mark many materials, including: plastics, wood, rubber, leather, metals, textiles and many others.
2/In the table below, you can see details about the material processing capabilities of our laser engraving and laser cutting machines.
3/The list of materials is structured according to processing type (cutting, engraving, marking).

	Laser tube 1.When the working current is 4mA and the tube is in the state of pre-ionization, the laser can be used for high-frequency impulse engraving. 2.The product is featured for working under large power rate and long service time, which is suitable for the cutting of knife mold machine and thick acrylic sheet.

	Japan Omron Electronic components

	Taiwan Rail It features equal load ratings in the radial, reverse radial, lateral directions, and self-aligning to absorb installation-error. Thus, the linear guideline is characterized with long service life with high speed, high accuracy and smooth linear motion.

	4.Stepper motor Low Noise Low Vibration Smooth Operation High Torque Higher Acceleration Ability Better Precision Better Acceleration Performance

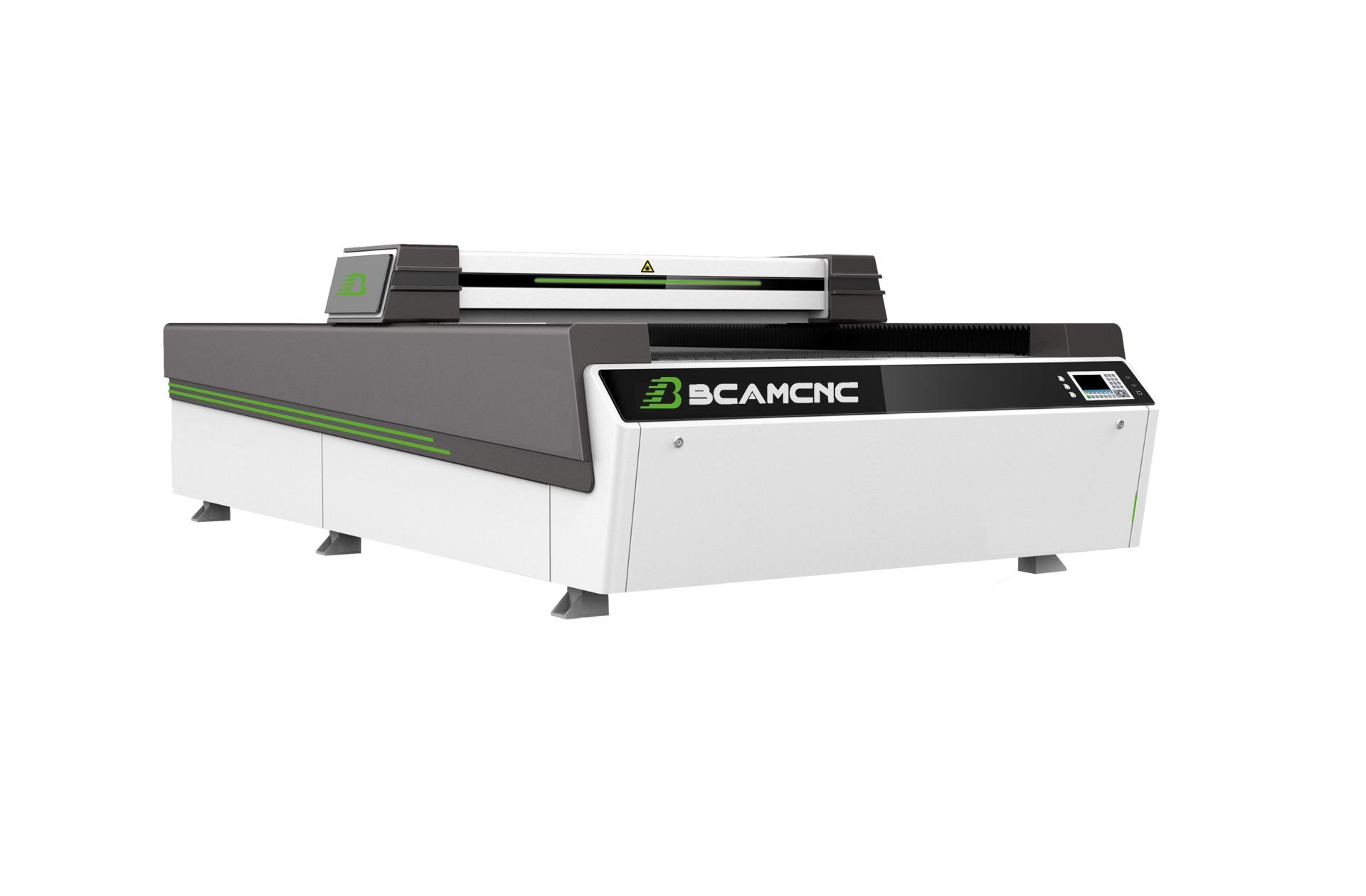

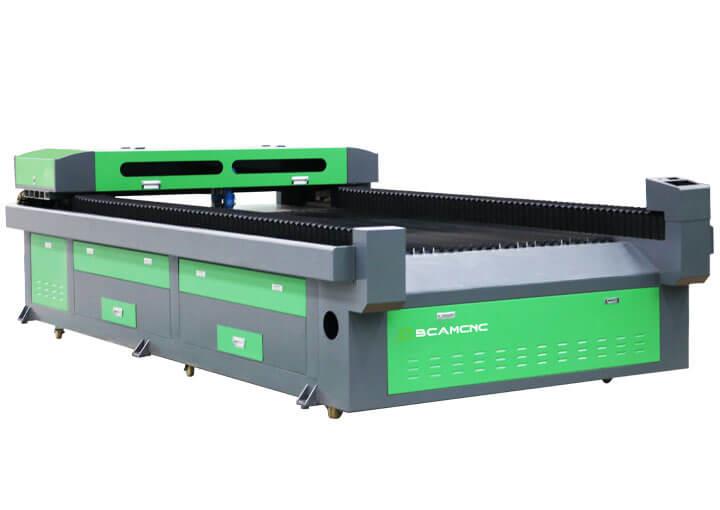

BCJ Laser cutting and Engraving machine

● Working area:600900mm（optional : 1300900mm/1300*2500mm )
● Laser tube: Reci brand 100W(W4) co2 laser tube power Optionas: 80W.130W.150w,180w,280w,300w ( Long lifetime,high efficiency)
● Table: Blade table
● Control system: RD control system (easy to learn and operate)
● Drive system:China stepper motor and drivers
● Rail: Taiwan PMI rail guide (high accuracy, long lifetime)
● Transmission: Shanghai Fulong belt (low noise, high transmission accuracy)
● Optical system: Singapore Wavelength lens and mirrors (automatic focus)
● Water chiller CW3000/5000/5200/6000
● Red point
● RD control system,USB offline
● RD untouched following system
● USB offline OR WIFI
● Taiwan TBI ball screw for Z axis transmision
● Water protection switch(guarantee water cycle of water chiller)
● Air pump
● Optional: Exhaust fan: 550w Dust collector (absorb the dust and harmful gas, keep the machine clean and protect workers’ body heath)
● Standard tool box
● Operation system:WinXP/Win7/Win8/Win10
● NG:330KG

Model		BCJ6090、BCJ1390/1325
Working Area		600900mm 1300900mm/1300*2500mm
Laser Power		80W/100w/120w/150w
Laser Type		CO2 Sealed Laser Tube ,10.6μm
Cooling Type		Water Cooling (CW3000 Water chiller)
Engraving Speed		0-60000mm/min
Cutting Speed		0-40000mm/min
Laser Output Control		0-100% set by software
Min. Engraving Size		Chinese: 2.0mm2.0mm, English Letter: 1.0mm1.0mm
Highest Scanning Precision		4000DPI
Locating Accuracy		≤ 0.01mm
Controlling Software		DSP Control System
Graphic Format Supported		DST PLT BMP DXF DWG AI LAS,etc
Compatible Software		CORELDRAW,PHOTOSHOP, AUTOCAD,TAJIMA,etc.
Color Separation		Yes
Drive System		High-precision 3-phase Stepper Motor
Auxiliary Equipments		Exhaust Fan and Air Exhaust Pipe
Power Supply		AC110V/220V+10%,50HZ/60HZ
Working Environment		Temperature:0-45C,Humidity 5-95%(No Condensate Water)

What materials can a Fiber laser cutting machine process? BCAM fiber laser cutting machines offer small and large companies the ability to affordably laser cut metal such as stainless, carbon steel, galvanized, and even aluminum materials. As a result companies have a great opportunity to cost effectively and efficiently laser cut highly intricate metal parts, prototypes, and customized pieces in house including: ►stainless steel ►soft steel ►Cabon steel ►aluminum ►Titanium ►brass ►copper ►thin sheet metal ►superior speed for&and;5mm ►operating cost effeciency ►greater reliability ►greater service life BEST LASER TYPE FOR CUTTING METAL Today, when it comes to cutting metal there's actually over 100 different types of metals you could process.Depending on what industry you are in you probably have at least one or more types of metal you need to laser cut. FIBER or GAS (commonly CO2) laser represent the two most common processes for processing metal whether it be ferrous or non-ferrous metals. YAG or crystal laser technology has been used in the past primarily for thick metal cutting, but it is more expensive and offers a significantly shorter service life compared to CO2 and fiber laser processing. If you're wanting to laser cut thick metal (over 5mm) then CO2 will be more efficient and faster as far as straight line speeds and piercing times at the beginning of the cut. Additionally, the downside and upside is that CO2 is really only able to process stainless steel, but also organic materials like wood, acrylic, leather, fabric, stone, etc. Fiber laser beam offers a metal friendly wavelength that is metal absorbs more efficiently. The smaller spot size (1 micron wavelength), and excellent beam profile make it ideal for cutting most any metals. Most notably compared to CO2 fiber has straight line speed that's 2-3x faster when cutting thin sheet metal at 3mm or less. As far as operating costs fiber needs only about 1/3 the operating power compared to CO2. Also, fiber offers lower down time, less ongoing maintenance all translates to increased productivity. For this reason fiber has been quickly displacing the traditional CO2 laser in most metal cutting applications.

What materials can a Fiber laser cutting machine process?
BCAM fiber laser cutting machines offer small and large companies the ability to affordably laser cut metal such as stainless, carbon steel, galvanized, and even aluminum materials. As a result companies have a great opportunity to cost effectively and efficiently laser cut highly intricate metal parts, prototypes, and customized pieces in house including:
►stainless steel
►soft steel
►Cabon steel
►aluminum
►Titanium
►brass
►copper
►thin sheet metal
►superior speed for&and;5mm
►operating cost effeciency
►greater reliability
►greater service life
BEST LASER TYPE FOR CUTTING METAL
Today, when it comes to cutting metal there's actually over 100 different types of metals you could process.Depending on what industry you are in you probably have at least one or more types of metal you need to laser cut. FIBER or GAS (commonly CO2) laser represent the two most common processes for processing metal whether it be ferrous or non-ferrous metals. YAG or crystal laser technology has been used in the past primarily for thick metal cutting, but it is more expensive and offers a significantly shorter service life compared to CO2 and fiber laser processing.
If you're wanting to laser cut thick metal (over 5mm) then CO2 will be more efficient and faster as far as straight line speeds and piercing times at the beginning of the cut. Additionally, the downside and upside is that CO2 is really only able to process stainless steel, but also organic materials like wood, acrylic, leather, fabric, stone, etc.
Fiber laser beam offers a metal friendly wavelength that is metal absorbs more efficiently. The smaller spot size (1 micron wavelength), and excellent beam profile make it ideal for cutting most any metals. Most notably compared to CO2 fiber has straight line speed that's 2-3x faster when cutting thin sheet metal at 3mm or less.
As far as operating costs fiber needs only about 1/3 the operating power compared to CO2. Also, fiber offers lower down time, less ongoing maintenance all translates to increased productivity.
For this reason fiber has been quickly displacing the traditional CO2 laser in most metal cutting applications.
