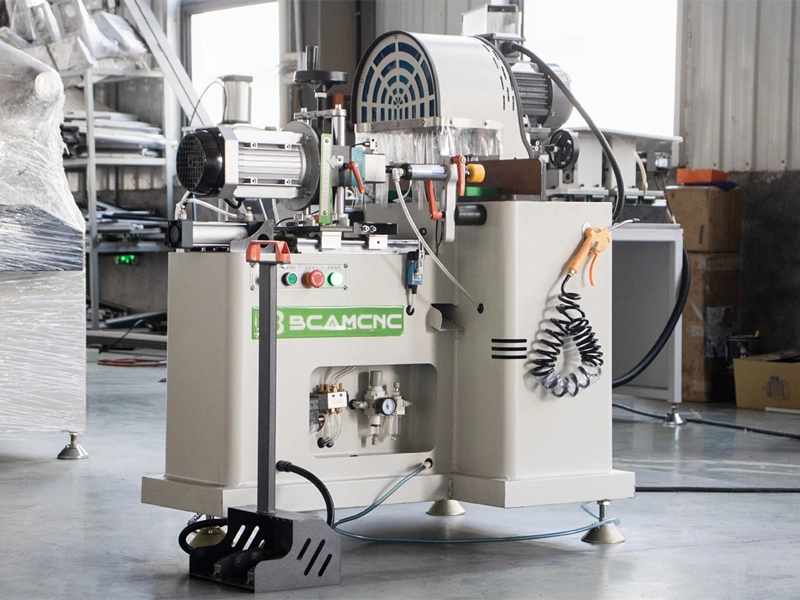

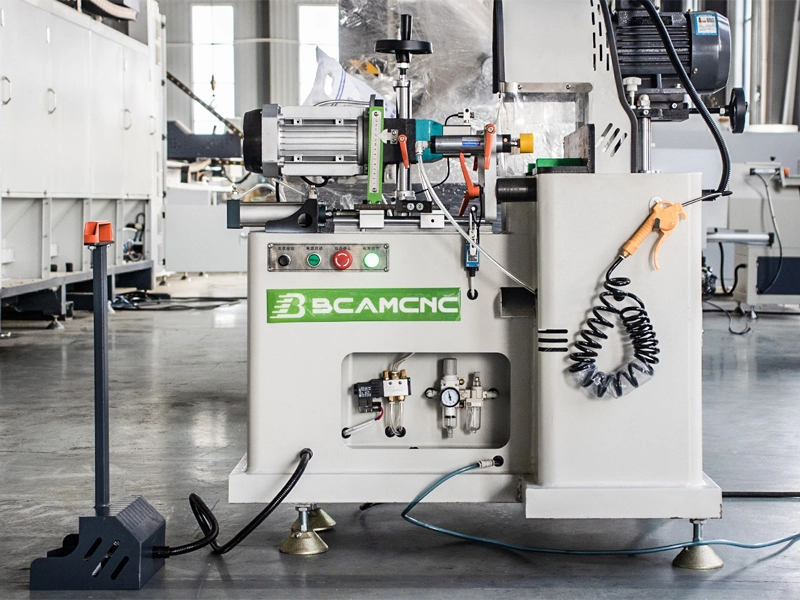

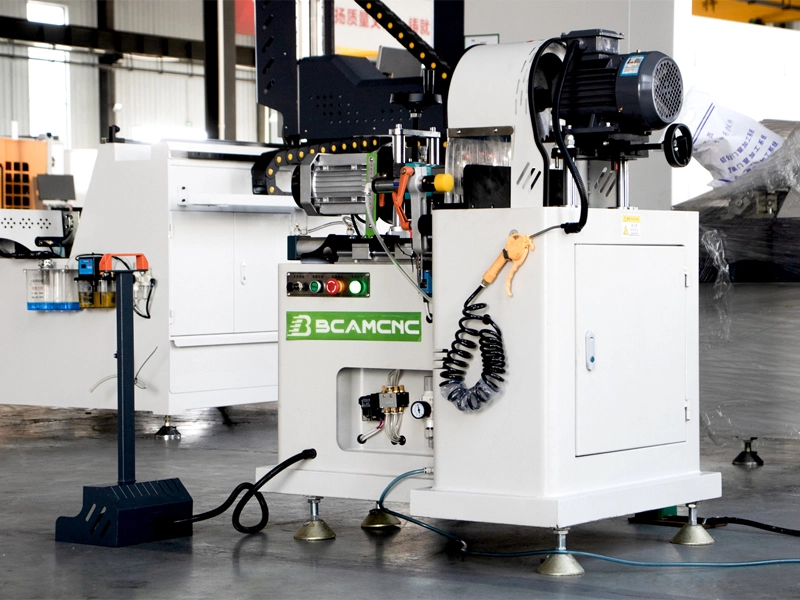

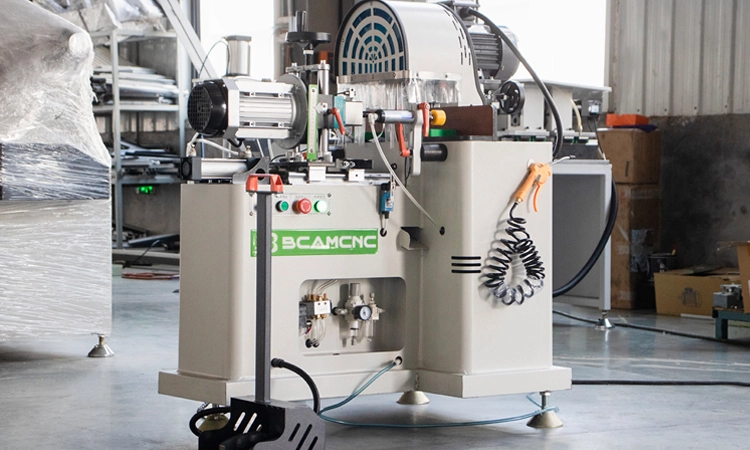

The UPVC Window Lock Hole Machine is designed for machining lock holes, handle openings and hardware slots on PVC and UPVC window profiles. It provides an efficient profile processing solution for window and door manufacturers requiring accurate machining during PVC window fabrication.
With a stable mechanical structure, pneumatic clamping system and adjustable milling design, this machine supports reliable processing for different PVC and UPVC profile applications.
The UPVC Window Lock Hole Machine is a professional profile processing machine used for machining lock positions, handle openings and hardware installation slots on PVC and UPVC window profiles.
It is suitable for manufacturers producing casement windows, sliding windows and PVC doors that require accurate profile machining before hardware installation.
The machine combines motor direct connection transmission, linear guide movement system, pneumatic clamping and positioning design to support stable operation during daily profile processing.

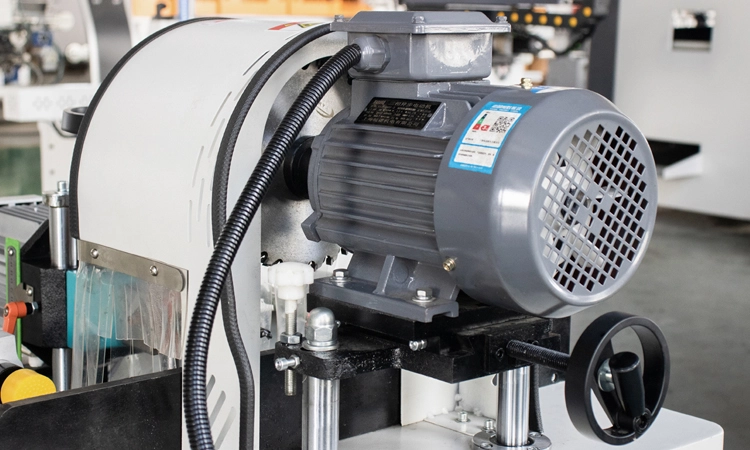

Stable Motor Direct Connection Transmission
The machine adopts a motor direct connection transmission structure, providing efficient power transmission and stable operation during profile machining.
The stable transmission system supports consistent milling performance for PVC and UPVC profile processing.
Linear Guide Movement System
The linear guide structure combined with pneumatic movement provides smooth movement during machining.
This design supports stable positioning and contributes to consistent processing results.
Double Infrared Positioning System
The double infrared positioning system helps operators locate machining positions more conveniently before processing.
It improves operation efficiency and supports accurate positioning during profile machining.

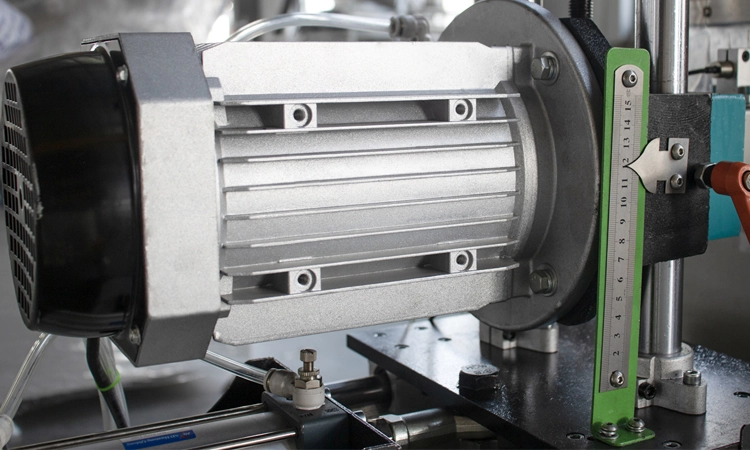

High-Speed Milling Motor
The UPVC Window Lock Hole Machine is equipped with a milling motor for processing lock holes, handle openings and hardware slots on PVC and UPVC profiles.
The milling unit provides stable cutting performance for daily window fabrication applications.
Adjustable Milling Position
The adjustable milling structure allows operators to set the processing position according to different profile requirements.
This provides flexibility for different PVC and UPVC profile machining applications.

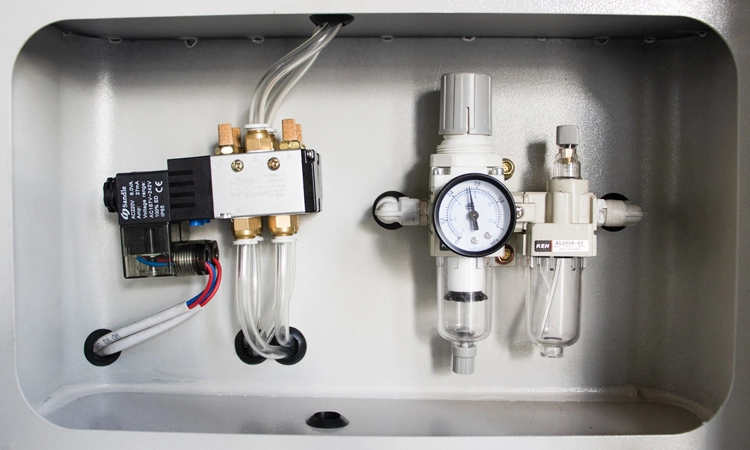

Pneumatic Clamping System
The pneumatic clamping system securely fixes the profile during machining.
It helps reduce profile movement during operation and supports stable processing results.

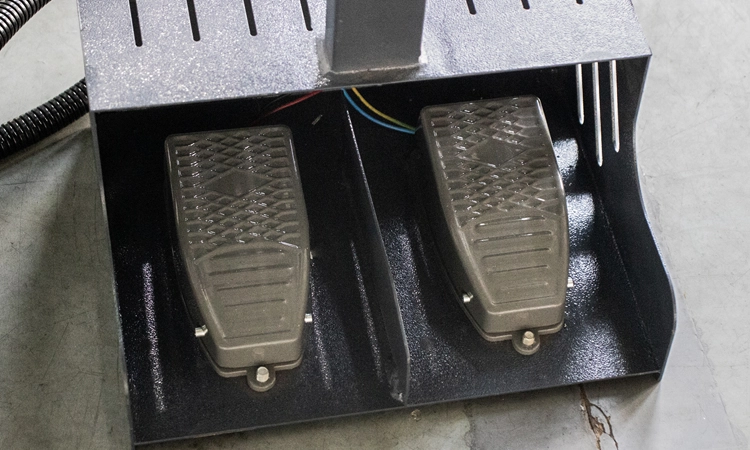

Foot Pedal Control Design
The foot pedal control system allows convenient machine operation while keeping both hands available for profile positioning and handling.
This design improves operation convenience during continuous production.

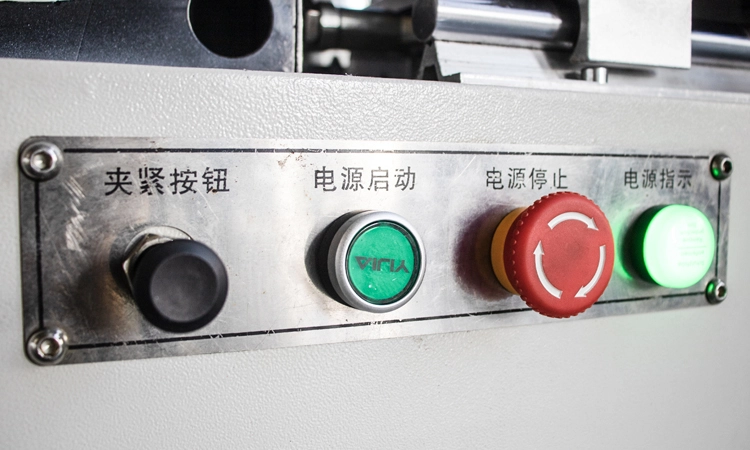

Simple Control Panel
The clear control panel provides convenient operation with dedicated buttons for machine control functions.
Safety Protection Cover
The protective cover around the milling area helps improve operator safety during processing and reduces direct exposure to machining debris.
The PVC Profile Lock Hole Machine is mainly used for machining hardware installation openings on PVC and UPVC window profiles.
Casement Window Fabrication
The machine can be used for processing lock holes and hardware slots during casement window production.
Sliding Window Processing
It supports profile machining requirements for sliding window fabrication.
PVC Door Manufacturing
The machine can be applied to PVC door profile processing where lock and hardware openings are required.
UPVC Window Fabrication
As a PVC Window Fabrication Machine, it provides a practical machining solution for UPVC window manufacturers.
The UPVC Window Lock Hole Machine is designed for practical PVC and UPVC profile machining applications.

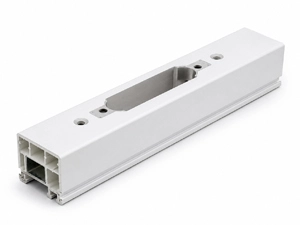

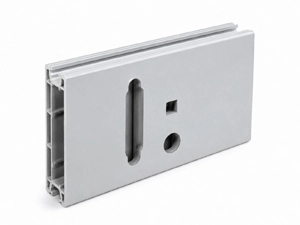

Lock Hole Processing Samples
Finished profile samples can demonstrate the machining results of lock holes and hardware openings.

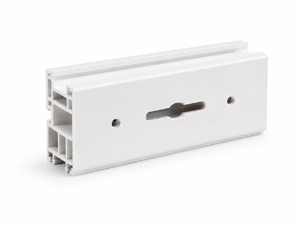

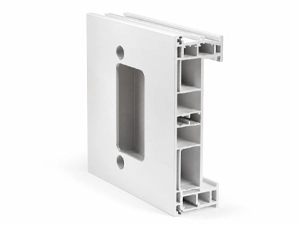

Hardware Slot Processing Samples
Processed profiles can show the application of the machine in window hardware preparation processes.
| Item | Technical Parameter |
|---|---|
| Rated Voltage | 220V / 380V (Optional according to machine configuration) |
| Frequency | 50Hz |
| Total Power | 3.7 KW |
| Milling Motor Power | 2.2 KW + 1.5 KW |
| Working Pressure | 0.6-0.8 MPa |
| Rotation Speed | 2800 r/min |
| Machine Size | 760 × 800 × 1660 mm |
| Weight | Approx. 250 kg |
CE Certified Machinery
BCAMCNC machines are designed according to international safety standards and supplied with CE certification for global markets.
ISO 9001 Quality Management Factory
Manufactured under an ISO 9001 quality management system, BCAMCNC focuses on consistent production processes and reliable equipment quality.
Exported to 180+ Countries and Regions
BCAMCNC machinery has been exported to more than 180 countries and regions, serving customers in different industrial markets worldwide.
12-Month Warranty Support
BCAMCNC provides warranty support to help customers maintain stable equipment operation after delivery.
Technical Support and Installation Assistance
BCAMCNC provides technical guidance and remote support. Overseas installation service can be arranged according to customer requirements.
What is an UPVC Window Lock Hole Machine used for?
An UPVC Window Lock Hole Machine is designed for machining lock holes, handle openings and hardware slots on PVC and UPVC window and door profiles. It helps manufacturers prepare accurate openings for hardware installation during PVC window fabrication.
What materials can this machine process?
This machine is designed for processing PVC and UPVC window and door profiles. It is suitable for machining lock holes, handle openings and hardware slots on common PVC profile systems used in window fabrication, including applications for casement windows, sliding windows and PVC door profiles.
What features improve the machining accuracy of this machine?
The machine uses a stable transmission structure, linear guide movement system, infrared positioning and pneumatic clamping to support accurate profile positioning during machining. The foot pedal control design also provides convenient operation for daily production.
Is this machine suitable for PVC window manufacturers?
The machine is designed for PVC and UPVC window fabrication applications where profile machining is required. It is suitable for manufacturers producing PVC windows and doors that need efficient lock hole and hardware slot processing.
