5 Axis CNC Router for Plastic Trimming and Formed Parts

Multi-Angle Cutting, Drilling and Cutouts for Curved Plastic Components

Last Updated: 2021-09-18
Trim formed edges, cut openings and machine features on curved plastic parts. The BCAMCNC D Series 5 axis CNC router combines simultaneous five-axis machining, RTCP and automatic tool changing to reach features on different faces. Working size, cutters and fixtures are selected around your component, material and production requirements.

Multi-Angle Tool Access · Contour Cutting · Automatic Tool Changing · Optional Dual Tables

SALE
Brand
- BCAMCNC
Model
- BCM2030D-5 AXIS
Table Size
- 2000*3000*800mm
(1 customer review)

Original price was: $73,529.00.Current price is: $72,110.00.

  • Supply – 360 Units in Stock Available for Sale Every Month
  • Quality  – CE Certified for Safety & Reliability
Warranty – Three-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Free Lifetime Technical Support for End-Users & Dealers
  • Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

5 Axis CNC Router Cutting Automotive Sheet PE

Machining Operations After Plastic Forming

Edge Trimming and Final Profiles

Remove excess material around formed edges and cut the component to its required outline.

Openings, Slots and Cutouts

Machine access openings, assembly features and slots in supported panels, covers and shells.

Drilling and Angled Features

Produce holes and features on inclined surfaces or different faces, with the tool approach selected for the geometry.

Five Axis Access Around Curved Plastic Parts

Follow Changing Surface Angles

The spindle can change orientation around curved profiles, sloping walls and raised sections, providing access beyond a fixed vertical cutting direction.

Reduce Repeated Handling

Where the part and fixture permit, compatible operations can be combined in one setup, reducing repositioning and alignment work.

Change Tools Within the Program

Automatic tool changing supports different cutters for trimming, drilling and other compatible operations. RTCP compensates for rotary-axis movement to maintain the programmed tool-center position.

Plastic Materials and Part Types

Material Typical Parts Process Focus
PE Formed panels, covers and supported components Part flexibility, chip removal and edge condition
ABS Formed housings, covers and panels Wall thickness, cutting heat and fixture support
PP Lightweight shells, liners and formed parts Flexibility, movement under cutting forces and chip evacuation
Other engineering plastics Application-specific formed or machined components Material grade, geometry and required finish

Material suitability is confirmed for the proposed process. Reinforced plastics require a separate review of tooling, extraction and machine protection.

Workholding That Supports the Part and Leaves Room to Cut

Formed parts may have thin walls, flexible edges or uneven supporting surfaces. A fixture must locate the component securely without distorting it.

Support close to the cutting area helps limit movement. The fixture also needs clearance for the cutter, tool holder and five-axis head throughout the program.

Mechanical, vacuum or combined workholding may be appropriate depending on the part. Fixture design and supply responsibilities are defined in the project proposal.

D Series Equipment for Plastic Trimming

Equipment Proposed Configuration
Machine series BCAMCNC D Series
Five-axis machining Simultaneous movement with RTCP
Spindle HITECO spindle
CNC control Syntec control system
Servo system Yaskawa motors and drives

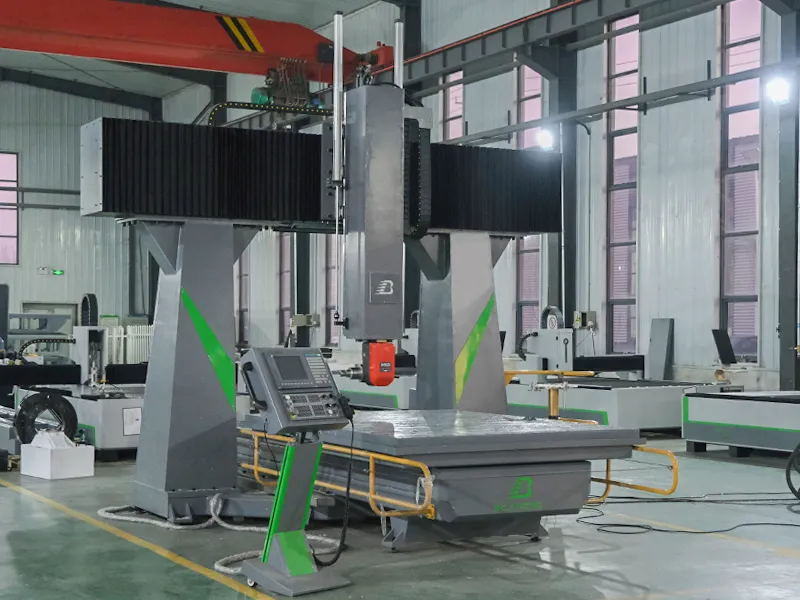

Tool changing Automatic tool changer
Table arrangement Single table; dual tables on selected configurations
Workholding Part-specific requirements confirmed per project

Working travel, spindle specifications, tool capacity and supporting equipment are listed in the quotation. Dual-table loading procedures depend on the supplied guarding and control interlocks.

View D Series Specifications and Main Components

Plan Your Component Machining Process

Provide three details to begin:

  • Material and construction: plastic type, grade, wall thickness and forming method where known.
  • Part dimensions: maximum length, width and height, with photographs if available.
  • Required operations: trimming lines, openings, holes, tolerances and acceptable edge condition.

Include production quantity and existing fixture information when available. CAD data helps assess tool access and develop the proposed setup.

Installation, Training and Technical Support

BCAMCNC provides installation planning, commissioning, operator training and technical support according to the agreed project scope.

Planning covers machine layout, electrical supply, loading access, fixtures and chip or dust collection. Training can include operation, setup, routine maintenance and troubleshooting.

Common Questions About Five Axis Plastic Machining

Do all formed plastic parts need five-axis machining?

No. Parts with straightforward vertical cutting access may suit a three-axis machine. Five-axis movement is useful when features require different tool orientations around a three-dimensional component.

Can thin plastic parts be machined without moving?

The result depends on part stiffness, fixture design, local support and cutting forces. Workholding is developed around the component rather than the material name alone.

Will the cut edge need further finishing?

That depends on the plastic, tool condition, cutting parameters and required edge specification. Sample cutting can help establish the process for a particular part.

Can operators load one table while the other is machining?

Only where the table arrangement, guarding and control interlocks permit it. Loading procedures are defined for the supplied machine.

Can the machine also make molds and models?

Suitable configurations can machine tooling board, cured resin and foam. Explore our mold material machining applications for those tasks.

Get a Configuration for Your Formed Plastic Part

Send your material, maximum dimensions and required trimming, drilling or cutting operations. BCAMCNC will recommend a machine configuration with proposed equipment, workholding requirements and pricing.

Get a Plastic Machining Quote
