5 Axis CNC Router for Mold Making in Tooling Board, Resin and Foam

Curved Surface Machining for Master Models, Patterns and Mold Tooling

Last Updated: 2025-03-25
5 axis CNC router for mold making, master models and curved-surface machining in tooling board, cured resin, foam and suitable aluminum. Features simultaneous five-axis machining, RTCP and automatic tool changing.
SALE
Brand
- BCAMCNC
Model
- BCM1325D-5 AXIS
Table Size
- 1300mm*2500mm

Original price was: $69,512.00.Current price is: $66,398.00.

  • Supply – 360 Units in Stock Available for Sale Every Month
  • Quality  – CE Certified for Safety & Reliability
Warranty – Three-Year Limited Warranty for Entire Machine (Extended Warranties Available for Major Parts)
  • 1-2 Days Handling and 7-30 Days Shipping
  • 30-Day Money Back Guarantee for Your Purchase
  • Free Lifetime Technical Support for End-Users & Dealers
  • Online (PayPal, Trade Assurance) / Offline (T/T, Debit & Credit Cards)

Tooling Board, Resin and Foam Machining Applications

Tooling Board Master Models

Machine PU and epoxy tooling board into master models, patterns and detailed tooling surfaces. Applications include automotive models, industrial prototypes and patterns used to produce subsequent molds.

Cured Resin Models and Mold Surfaces

Shape suitable cured resin blocks and tooling layers into three-dimensional forms. Direct mold applications depend on the resin properties and intended molding process.

Foam Models and Patterns

Rough and finish foam blanks for prototypes, patterns and mold-related forms. Material density, feature size and cutter reach influence the machining approach.

Mold Material Machining Samples

See the material, cutting process and machined surface together—from rough-shaped blanks to detailed curves and features.

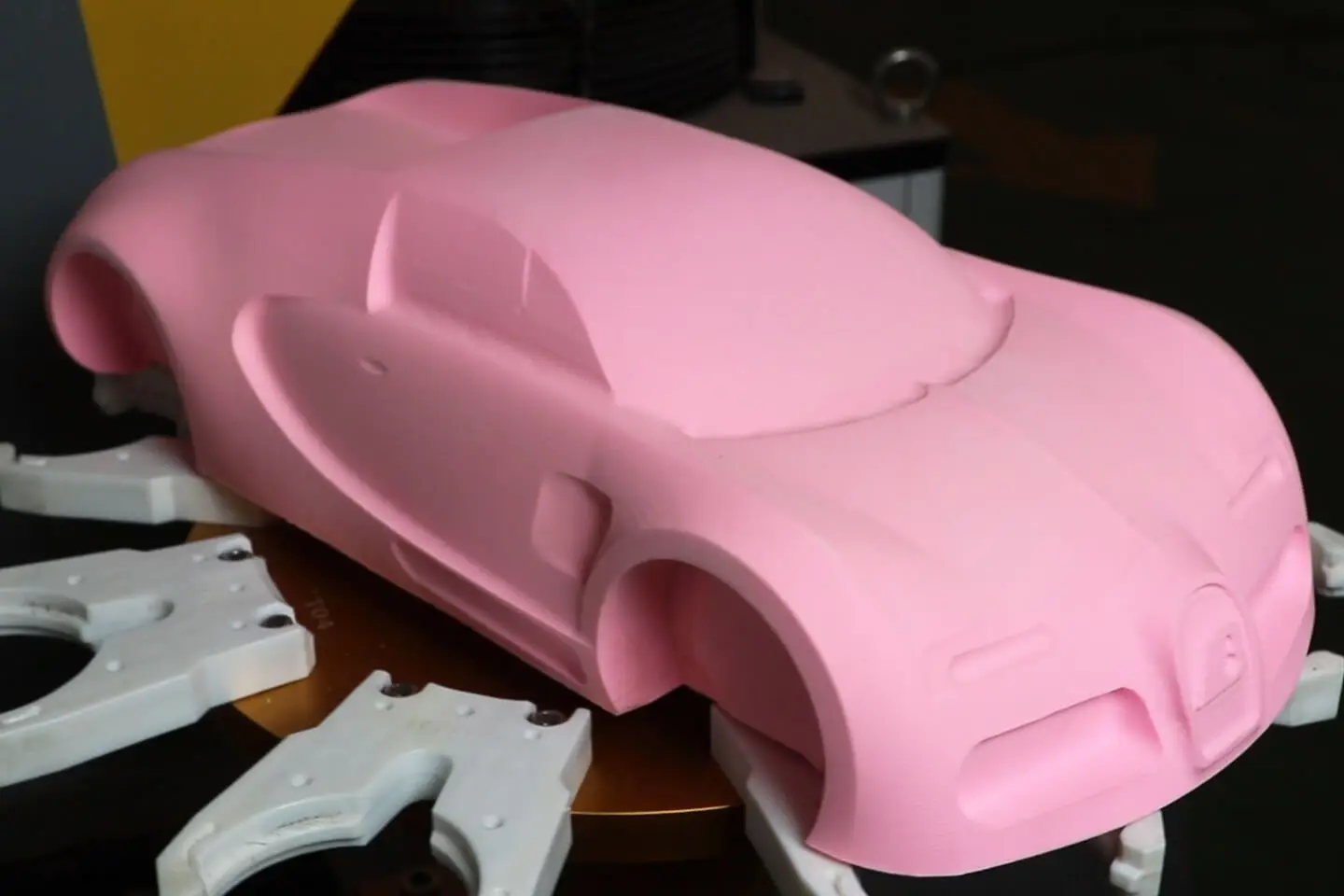

epoxy-tooling-board-mold-manufacturing Automotive Model Machining

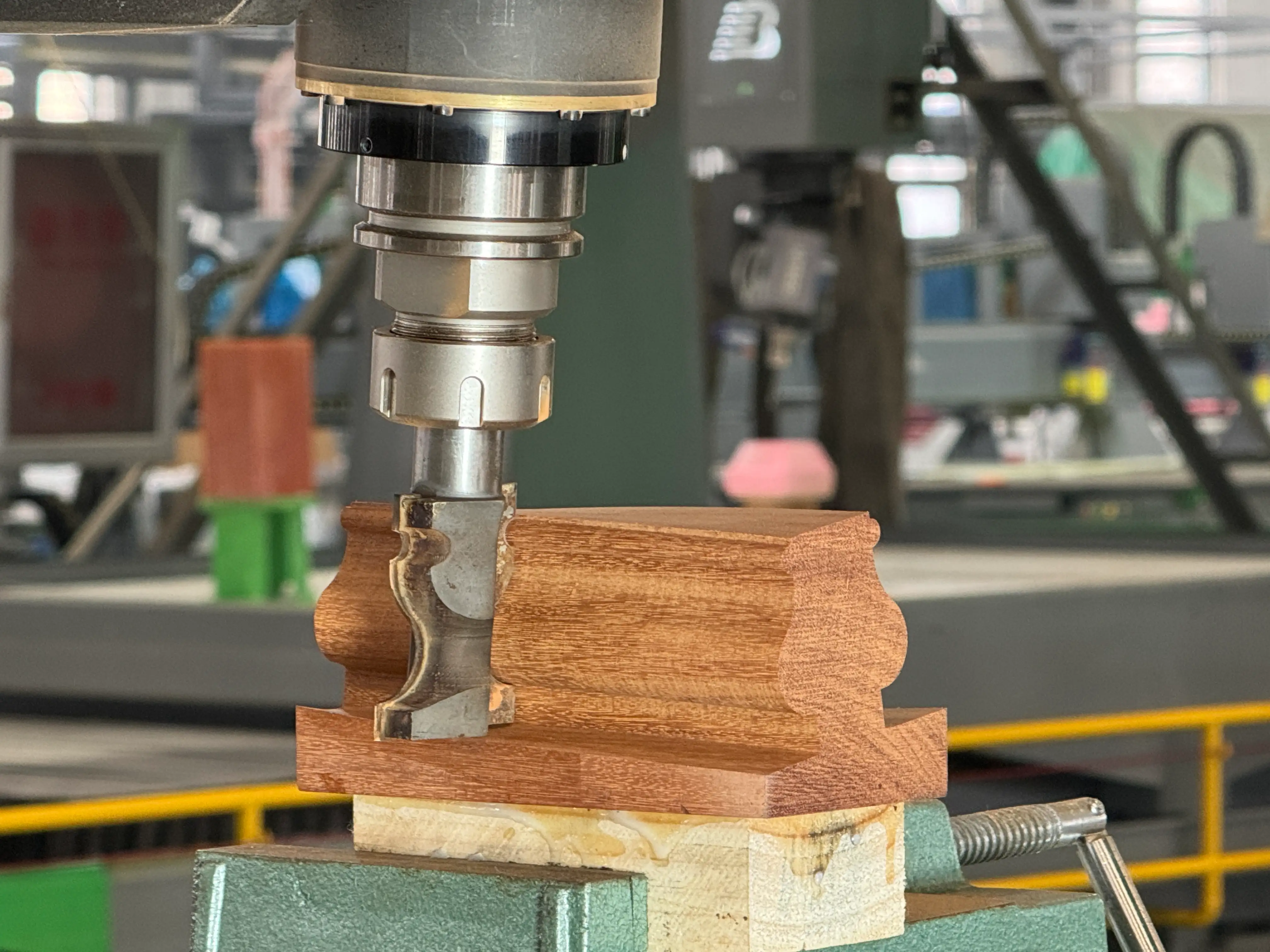

Shaped Solid Wood Machining complex-solid-wood-furniture-components

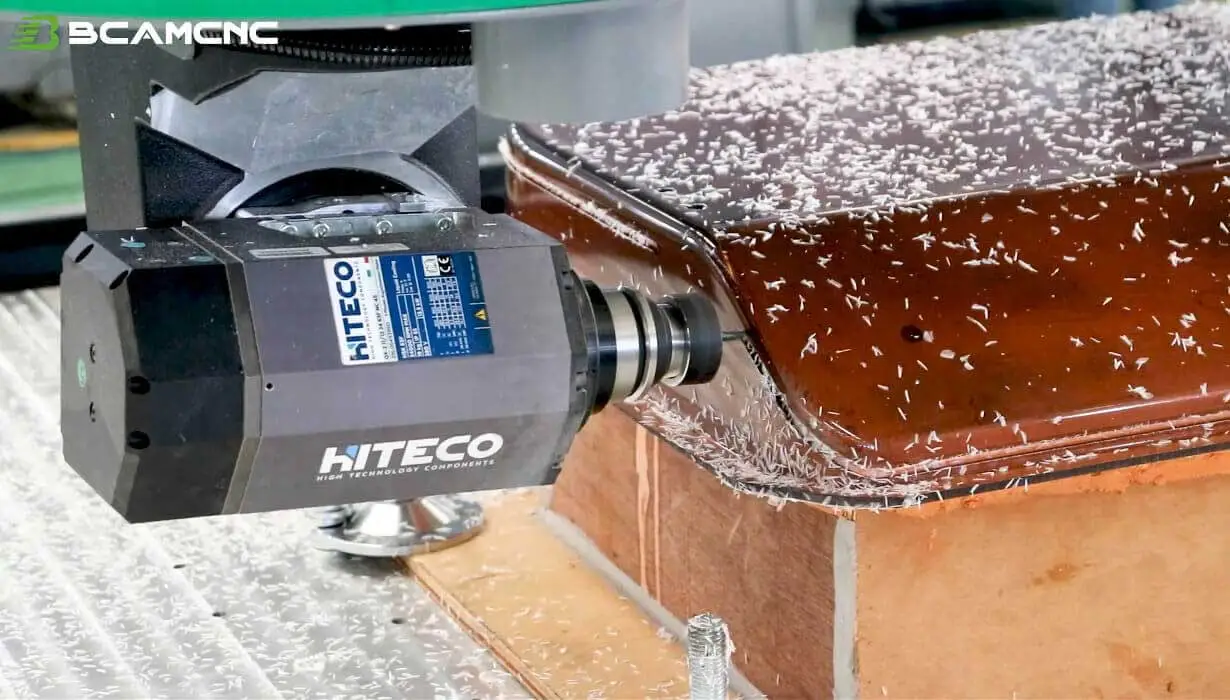

five-axis-contour-machining Five Axis Contour Machining
Aluminum Shoe Model Machining aluminum-shoe-model-machining
tooling-board-curved-surface-machining Tooling Board Curved Surface Machining

From Material Removal to Curved-Surface Finishing

Rough Shaping

Remove bulk material to establish the model geometry, leaving an appropriate allowance for subsequent machining.

Surface Finishing

Use finishing toolpaths to follow curved profiles and detailed surfaces. Cutter geometry, stepover and material properties influence the resulting surface texture.

Angled and Multi-Face Features

Approach inclined walls and features from different directions. Where the geometry permits, compatible operations can be combined to reduce repeated clamping and alignment.

Automatic tool changing supports different cutters within the machining sequence. RTCP compensates for tool-position changes during coordinated rotary-axis movement.

Match the Process to Your Mold Material

Material Typical Output Main Process Requirements
PU tooling board Master models, patterns and prototypes Board density, joint construction, tool selection and surface detail
Epoxy tooling board Tooling patterns and suitable direct molds Material grade, cutting conditions and intended molding process
Suitable cured resin Models, tooling surfaces and mold components Cure condition, material properties, chip removal and support
EPS and PU foam Large forms, patterns and mold blanks Foam density, cutter reach, workholding and finishing allowance

Bonded blocks and layered constructions should be identified during project review. Joints, supports and machining allowances form part of the complete setup.

Master Models and Direct Molds Serve Different Purposes

Master Models and Patterns

A master model establishes the shape used to make another mold. Its machining and surface preparation must suit the next stage of production.

Directly Machined Molds

Suitable tooling materials can be machined into the mold itself. Material selection must account for the molding temperature, pressure, surface requirements and intended use.

Machining does not automatically make either surface ready for production. Sealing, coating, sanding or polishing may still be required.

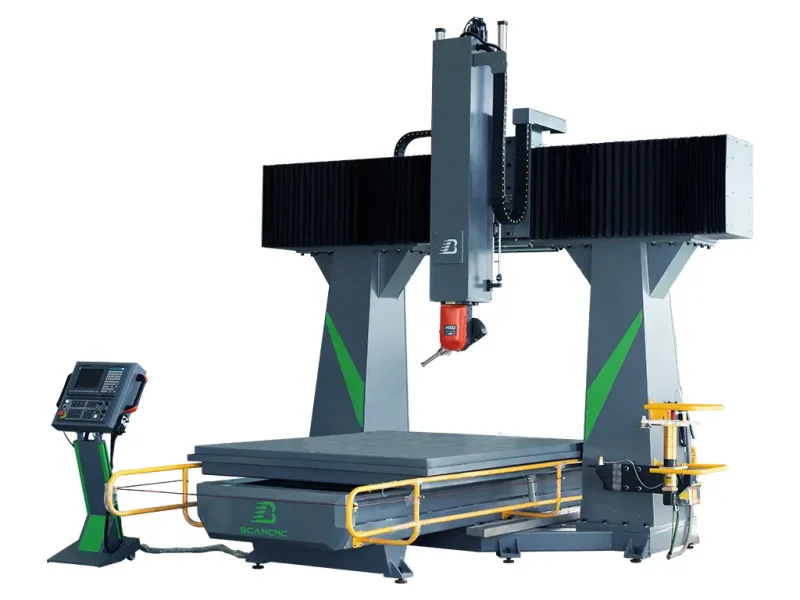

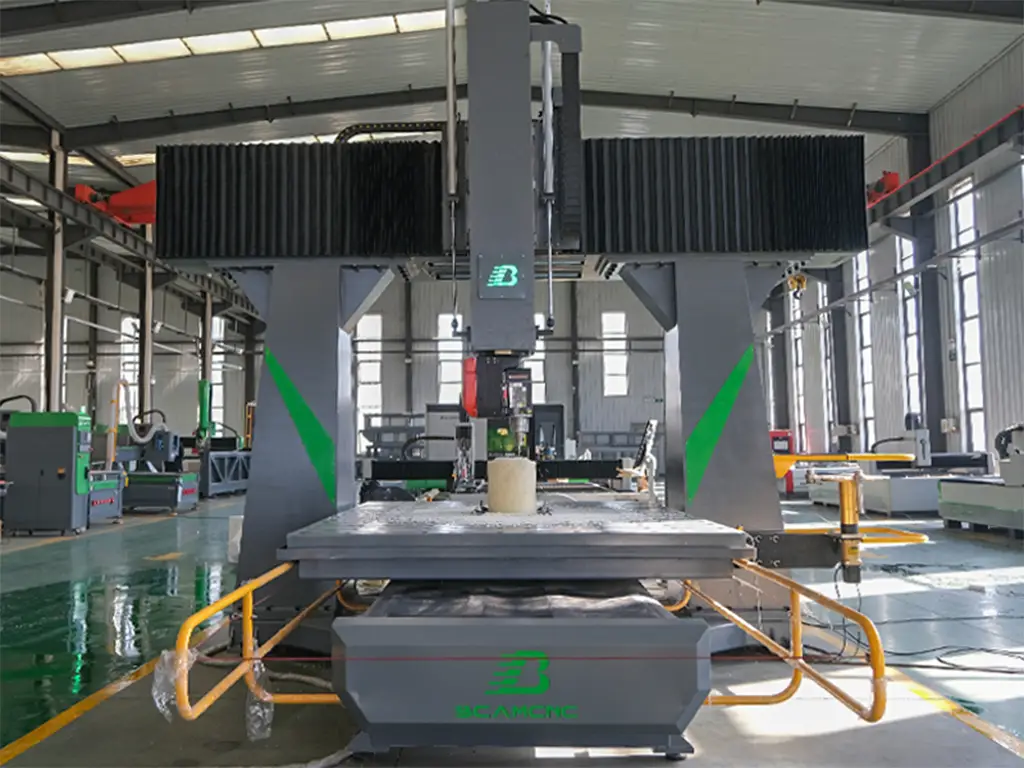

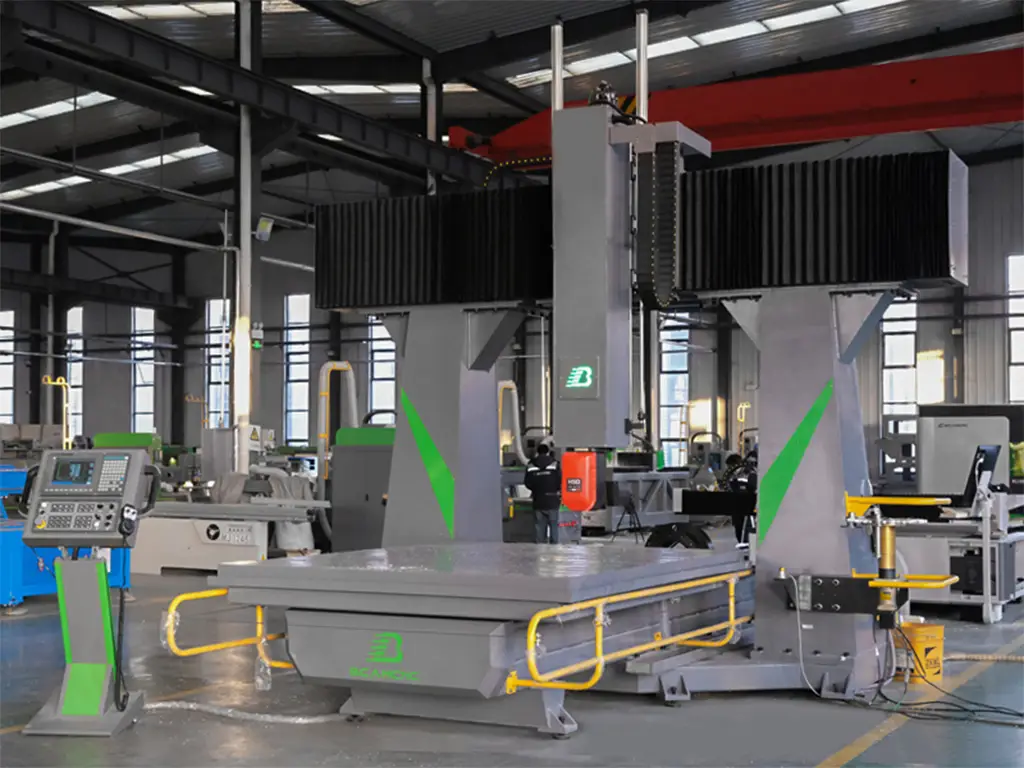

Industrial 5 Axis CNC Router for Complex 3D Composite Projects Workshop View 1

D Series Equipment for Mold Material Machining

Equipment Proposed Configuration
Machine series BCAMCNC D Series
Five-axis movement Simultaneous machining with RTCP
Spindle HITECO spindle
CNC control Syntec control system
Servo system Yaskawa motors and drives
Tool changing Automatic tool changer
Workholding Fixtures and table arrangement selected for the part

Working travel, spindle power, rotary-axis range, tool capacity and included equipment are confirmed for the selected machine.

View D Series Specifications and Main Components

5 Axis CNC Router RTCP

Utilizing the Renishaw High-Precision Probe, we perform active kinematic calibration on every machine. This creates a real-time compensation matrix for the 5-axis Rotating Tool Center Point (RTCP).

Plan Around the Blank, Fixtures and Cutting Access

To define the machining setup, provide:

  • Material: product name or grade, density where known, and cure condition for resin.
  • Blank construction: solid block, bonded boards, layered material or tooling paste.
  • Part dimensions: maximum length, width and height, including supports.
  • Required result: rough-shaped model, finished master model or directly machined mold.

For deep recesses and narrow openings, CAD geometry helps assess cutter reach and spindle-head clearance.

For larger molds and tall model structures, explore our large mold and model machining applications.

Installation, Training and Technical Support

BCAMCNC provides installation planning, commissioning, operator training and technical support according to the agreed project scope.

Training can cover machine operation, setup, routine maintenance and troubleshooting. Application trials and acceptance requirements are discussed during machine selection.

Questions About Machining Mold Materials

Can one machine rough and finish the same model?

Yes, with suitable cutters, toolpaths and a configuration matched to the material and required finish. Automatic tool changing supports transitions between these operations.

Can PU and epoxy tooling boards use the same cutting settings?

Not necessarily. Board grade, density, cutter geometry and the machining operation determine suitable parameters.

Will the machined surface need sanding or coating?

That depends on the material, surface specification and next production stage. Finishing requirements should be agreed before choosing the machining strategy.

Can the machine reach deep cavities?

Access depends on the opening, depth, wall shape, tool length and head clearance. A CAD model helps assess the required cutting positions.

Can this configuration machine steel injection molds?

The configuration presented here focuses on tooling board, cured resin and foam. Steel injection molds require a dedicated metal-cutting machine and process assessment.

Get a Configuration for Your Mold Material and Part

Send your material details, maximum dimensions and required machining result. Add a drawing, photograph or surface requirement if available.

BCAMCNC will recommend a D Series configuration with proposed specifications, equipment options and pricing.

Get a Mold Machining Quote
