Original price was: $3,152.00.$3,025.00Current price is: $3,025.00.

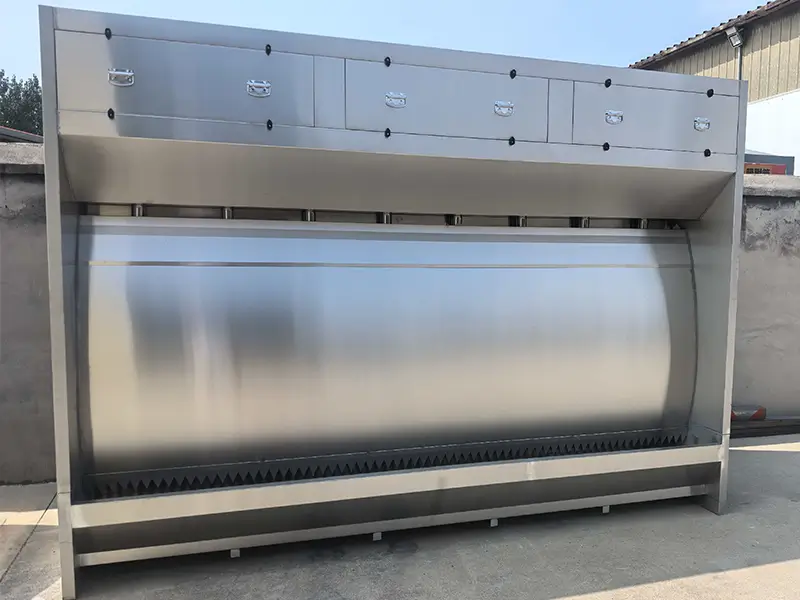

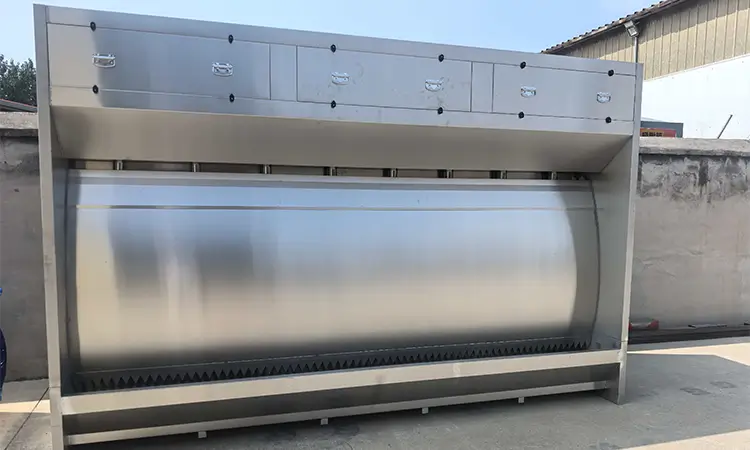

The Open Face Water Wash Spray Booth is designed for industrial spray painting environments that require efficient paint mist collection, stable airflow control, and long-term corrosion resistance. This industrial coating solution utilizes a continuous water curtain system to capture overspray particles and improve workshop air cleanliness during manual spraying operations.
Manufactured with a stainless steel structure and equipped with an industrial centrifugal blower, the system is suitable for metal parts coating, furniture finishing, hardware spraying, plastic component painting, and other industrial surface finishing applications.
Compared with dry filtration systems, this water curtain paint booth provides continuous overspray washing performance and helps reduce paint residue accumulation inside the ventilation system. The open-face structure also improves accessibility for operators handling large or irregular workpieces.
The Open Face Water Wash Spray Booth integrates a stainless steel water curtain panel, circulation water tank, paint sludge separation system, industrial exhaust blower, and independent electrical control cabinet into one complete industrial paint mist collection solution.
During operation, the centrifugal blower creates stable negative pressure behind the water curtain. Overspray particles are pulled toward the flowing water surface, where paint mist is captured and washed into the lower circulation tank. Internal airflow separation structures help remove excess moisture before the air is discharged through the exhaust system.
This industrial spraying system is manufactured using SUS201 stainless steel panels and includes a large-capacity water circulation structure designed for continuous industrial operation.
| Item | Specification |
|---|---|
| Product Type | Open Face Water Wash Spray Booth |

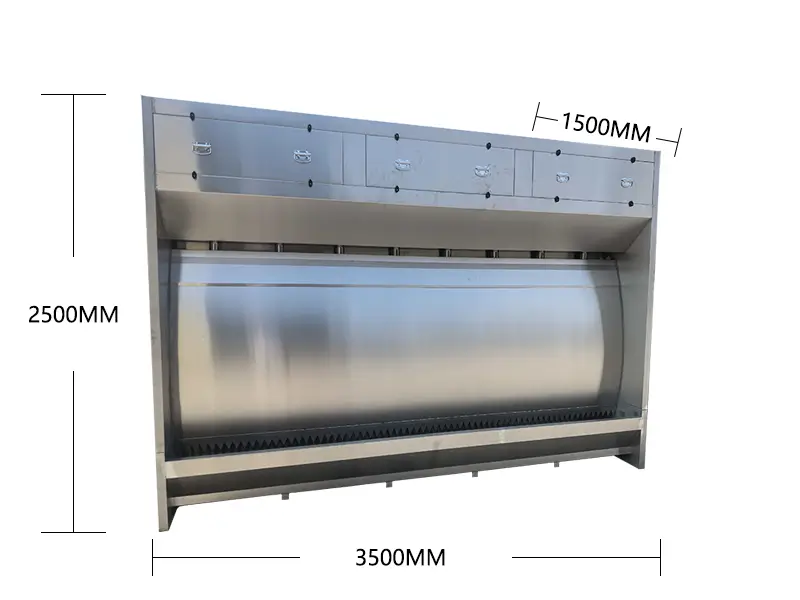

| Booth Dimensions | 3500 × 1500 × 2500 mm |
| Material | SUS201 Stainless Steel |
| Water Tank Thickness | 1.5 mm |
| Upper Plate Thickness | 1.2 mm |
| Side Panel Thickness | 1.5 mm |
| Exhaust Fan Power | 11 KW |
| Fan Type | Industrial Centrifugal Blower |
| Voltage | 380V / 3 Phase / 50Hz |
| Electrical Control Cabinet | Included |
| LED Lighting | Included |
| Curved Water Curtain Structure | Included |
| Rainproof Exhaust Components | Included |
The Stainless Steel Water Curtain Paint Booth is manufactured using stainless steel panels to improve durability in humid industrial painting environments. Compared with galvanized steel structures, stainless steel materials provide better corrosion resistance during long-term water circulation and paint mist exposure.
The smooth metal surface also improves cleaning efficiency because paint sludge and coating residue can be removed more easily during maintenance operations.
The spray booth utilizes reinforced structural framing to support stable industrial operation. The stainless steel exterior also provides a cleaner and more professional appearance for industrial coating workshops and production facilities.
This industrial paint booth uses a flowing water curtain to collect overspray particles generated during spraying operations. Water continuously flows across the curtain panel to create a stable washing surface for paint mist collection.
As airborne coating particles move toward the rear airflow system, overspray residues contact the moving water curtain and enter the lower circulation tank.
This operating method helps reduce paint mist accumulation inside the booth and improves workshop ventilation conditions.

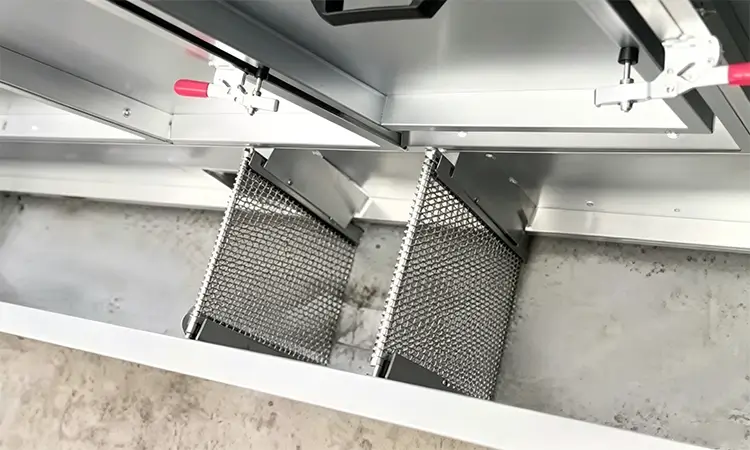

The lower circulation tank includes a stainless steel filter structure designed to capture larger paint residue particles before they enter the recirculation system.
This removable filtration design helps prevent pump blockage, reduces maintenance downtime, and improves the service life of the water circulation components.
The stainless steel filtration structure is also designed for convenient cleaning during daily maintenance operations.

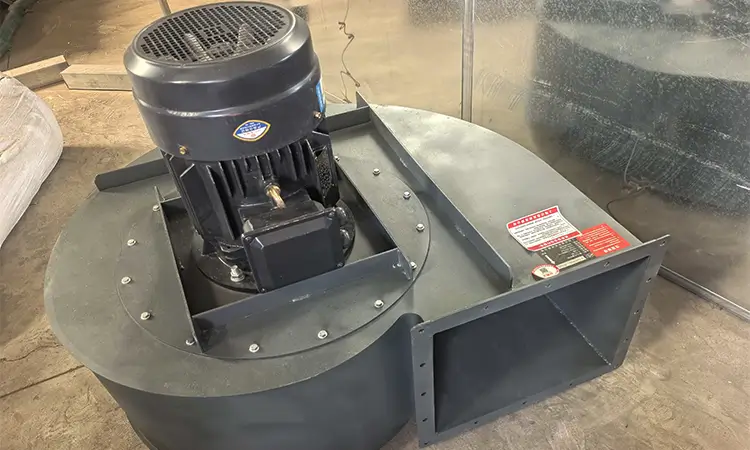

The Water Wash Spray Booth is equipped with an industrial centrifugal blower designed to generate stable negative pressure inside the spraying area.
The ventilation system helps prevent paint mist leakage into the workshop while improving overspray transfer toward the water curtain section.
For industrial coating environments involving solvent-based paints, explosion-proof motor configurations may be selected according to project requirements and local safety regulations.

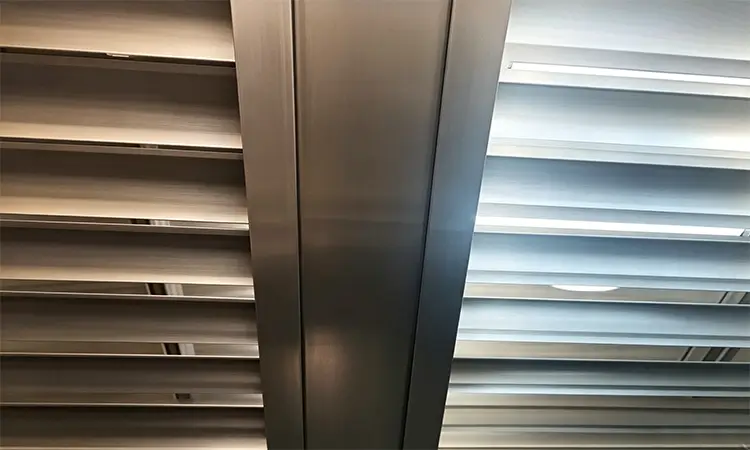

Internal labyrinth baffle structures are installed behind the water curtain area to help separate moisture from the airflow before air discharge.
This design helps reduce water carryover into the exhaust ducting system and improves protection for the centrifugal blower and ventilation components.
The multi-stage airflow separation structure also helps improve secondary paint mist capture efficiency.

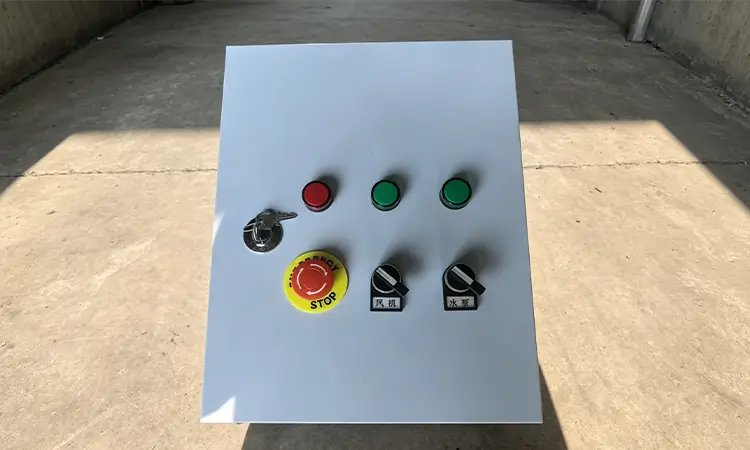

The system includes an independent electrical control cabinet designed for industrial operation management.
The control panel includes separate controls for the centrifugal blower and water circulation pump, allowing operators to manage airflow and water flow independently.
An emergency stop button is installed on the front panel to support safer industrial operation during unexpected situations.
The standard electrical configuration is 380V / 3 Phase / 50Hz, suitable for many industrial manufacturing environments.
Alternative electrical specifications may be customized according to destination country requirements and project conditions.
The Open Face Water Wash Spray Booth allows operators to load and spray large workpieces directly from the front opening.
This open structure is suitable for:
The open-face design also improves accessibility for manual spray painting operations.
This industrial spray booth can be used in various coating environments where paint mist collection and workshop ventilation are required.
Common application industries include:
The Water Wash Spray Booth includes rear maintenance access sections designed for internal inspection and cleaning.
Operators can inspect water flow conditions, internal baffle structures, and filtration components more conveniently during maintenance procedures.
The internal stainless steel filtration structures are designed for easy removal and cleaning.
This helps reduce maintenance downtime and supports continuous industrial operation.
The system uses stainless steel materials designed for humid industrial painting environments and long-term industrial operation.
The water curtain system helps improve paint mist collection efficiency during continuous spraying processes.
The centrifugal blower and internal airflow separation structures help maintain stable airflow conditions inside the spraying area.
The removable filter structure and inspection access sections help simplify routine cleaning procedures.
The Open Face Water Wash Spray Booth is suitable for multiple coating industries and different workpiece dimensions.

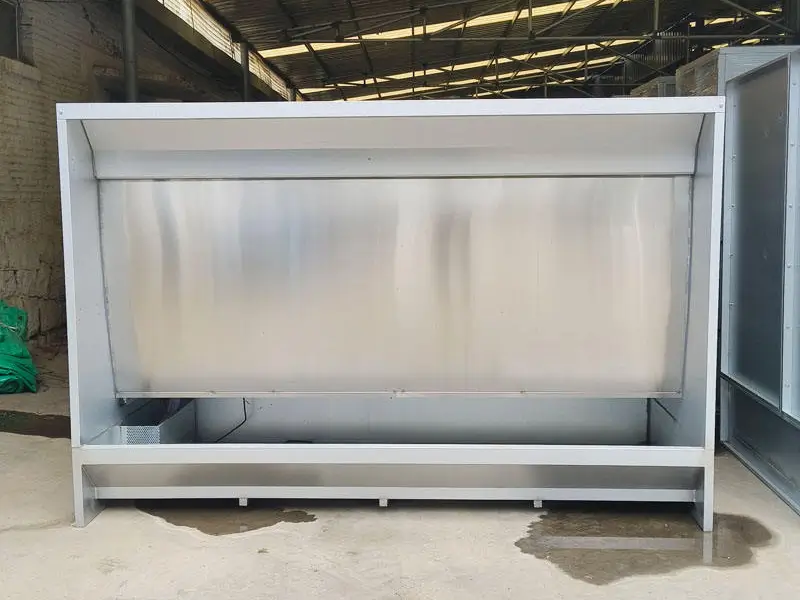

The Water Wash Spray Booth may be customized according to project requirements.
Optional configurations may include:
Customization availability depends on final project specifications.
The Open Face Water Wash Spray Booth provides an efficient industrial solution for paint mist collection and spray painting ventilation. With its stainless steel structure, water curtain washing system, industrial centrifugal blower, and maintenance-friendly design, the system is suitable for a wide range of industrial coating applications.
For manufacturers seeking a Stainless Steel Water Curtain Paint Booth with stable airflow performance and convenient maintenance access, this industrial spraying solution supports cleaner workshop environments and improved operational efficiency.
