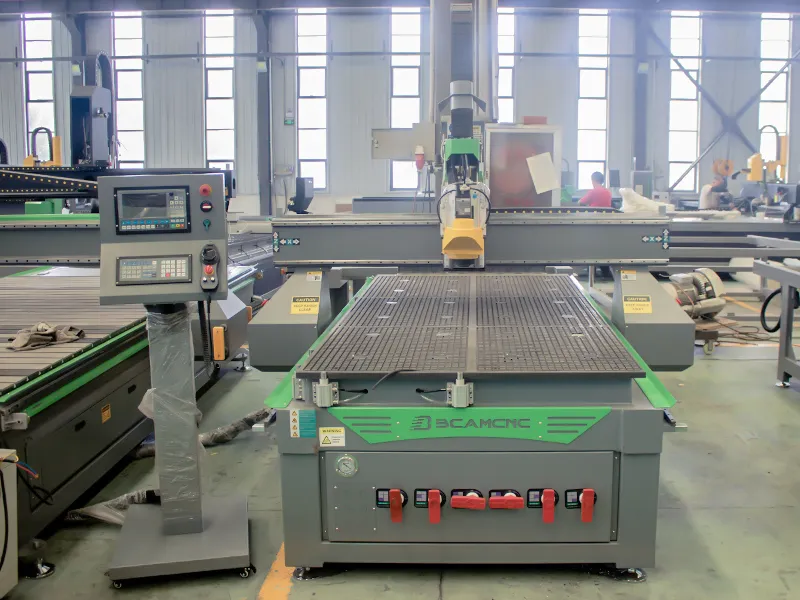

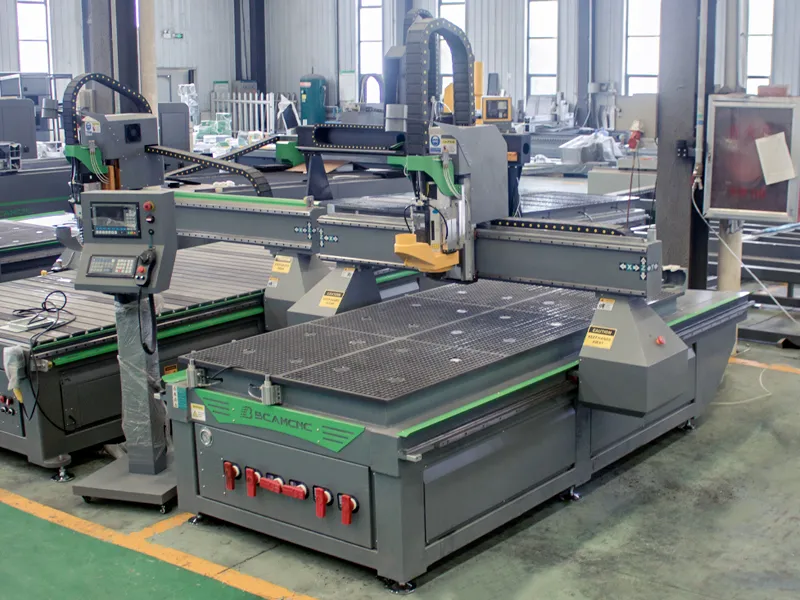

BCM1530 CA Series 5×10 ft ATC CNC Router for Woodworking
5×10 ft Linear ATC CNC Router for Furniture, Cabinet Doors and Panel Processing
Last Updated: 2025-11-24
Turn large-format panels into finished parts with fewer manual tool changes. The BCM1530 CA Series combines a 5×10 ft working area, a 9.0 kW HQD spindle and a standard 8-tool ISO30 ATC to complete cutting, engraving, grooving and profiling in one programmed workflow—ideal for cabinet doors, furniture panels, MDF, plywood and sign production.
The BCM1530 CA Series is a 3-axis ATC CNC router designed for furniture production, cabinet door processing, MDF and plywood cutting, solid wood routing, sign making and large-format panel machining.
The standard machine provides a 1500 × 3000 × 200 mm working area, a 9.0 kW HQD air-cooled spindle, an 8-position ISO30 linear automatic tool changer, 750 W Leadshine servo motors and a vacuum table with integrated T-slot clamping.
During multi-process machining, the automatic tool-changing system selects different cutting tools according to the programmed toolpath. This helps reduce repeated manual tool changes when completing cutting, engraving, grooving, drilling and edge-profiling operations.
1500 × 3000 × 200 mm Working Area
9.0 kW HQD Air-Cooled ATC Spindle
Standard 8-Position ISO30 Linear Tool Magazine
750 W Leadshine Servo Motors with Reducers
Vacuum Table with Integrated T-Slot Clamping
2-Year Warranty
BCM1530 CA Series Main Machine Details

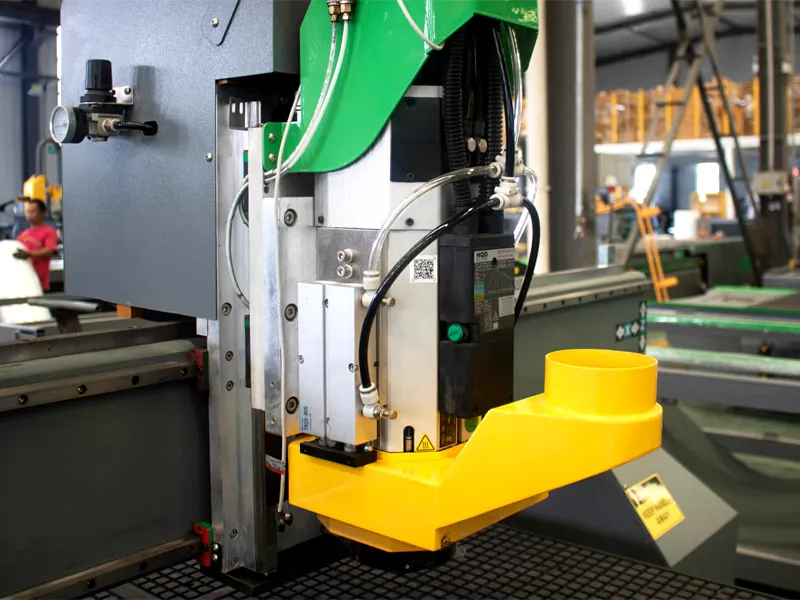

9.0 kW HQD ATC Spindle
The 9.0 kW HQD air-cooled spindle features an ISO30 tool-holding system and an 8-position automatic tool changer.

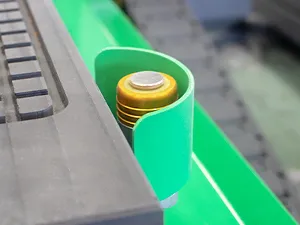

Automatic Tool-Setting Device
The tool-setting device helps measure tool length after tool installation or replacement, reducing repeated manual adjustment.

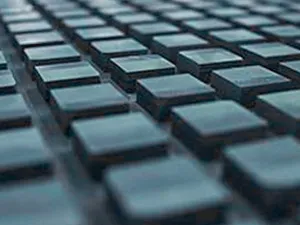

Vacuum Working Table
The vacuum table helps hold suitable flat panels securely during cutting, engraving and grooving operations

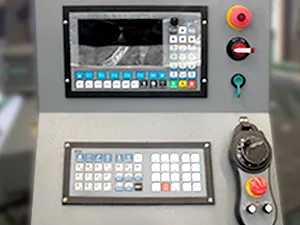

DDCS Control System
The DDCS controller supports G-code machining and automatic tool-changing operations through a user-friendly operating panel.

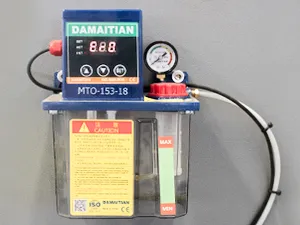

Automatic Lubrication System
The automatic lubrication system simplifies routine lubrication of the relevant machine transmission components.

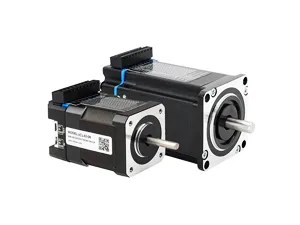

Leadshine Servo Drive System
The machine uses 750 W Leadshine servo motors with reducers to support controlled positioning and machining movement.

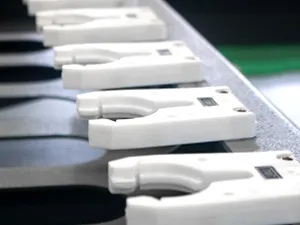

8-Position Linear Tool Magazine
The standard 8-position linear tool magazine allows the spindle to select different tools according to the programmed machining sequence.
BCM1530 CA Series Standard Configuration
Item
Standard Configuration
Model
BCM1530 CA Series
Machine Type
3-Axis ATC CNC Router
Standard Working Area
1500 × 3000 × 200 mm
Approximate Sheet Format
5 × 10 ft
Spindle
9.0 kW HQD Air-Cooled ATC Spindle
Tool-Holder System
ISO30
Standard Tool Magazine
8-Position Linear Tool Magazine
ATC Configuration
Automatic Tool Changer
Spindle Speed
6,000–24,000 RPM
Control System
DDCS Control System
Drive System
750 W Leadshine Servo Motors
Reducers
Included with the Servo Drive System
X/Y-Axis Transmission
Helical Rack Transmission
Z-Axis Transmission
Ball Screw
Working Table
Vacuum Table with Integrated T-Slot Clamping
Tool Setting
Automatic Tool-Setting Device
Lubrication
Automatic Lubrication System
Command Language
G-Code
File Interface
USB
Working Voltage
Configured According to the Customer’s Local Power Supply
Warranty
2 Years
Specifications, components and optional equipment may vary according to the confirmed order. The final machine configuration should be based on the official quotation and sales agreement.
Materials and Applications
The BCM1530 CA Series is mainly designed for woodworking, furniture manufacturing, panel processing and sign-making applications.
The actual processing capability depends on the material, thickness, cutting tool, machining parameters, cooling method and confirmed machine configuration.

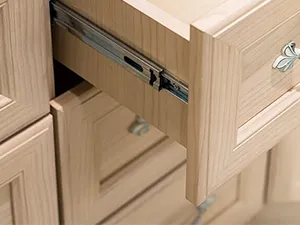

Furniture and Cabinet Production
The machine can be used to process furniture panels, cabinet components, shelves, table components, decorative parts and customized wooden products.
The automatic tool changer is useful when one product requires several tools for cutting, grooving, drilling, engraving and edge profiling.
Cabinet Door Processing
Different cutting tools can be used within one machining program to complete cabinet door profiling, surface engraving, grooving and final cutting.
The standard 8-position automatic tool changer helps reduce repeated manual tool replacement between these operations.

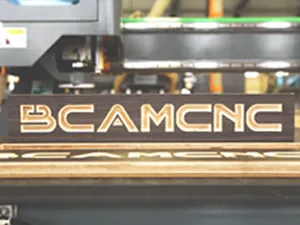

MDF and Plywood Processing
The 1500 × 3000 mm working area supports large-format MDF, plywood and similar panel materials used in furniture and interior decoration.
Vacuum holding performance depends on the material density, sheet size, surface condition and selected vacuum pump configuration.
Solid Wood Routing and Carving
The machine can be used for solid wood relief carving, decorative panels, wooden signs, furniture components and customized wood products.
The machining strategy should be adjusted according to the wood species, grain direction, cutting tool and required surface finish.
Acrylic, PVC and Sign-Making Materials
With suitable cutting tools and machining parameters, the machine can process acrylic, PVC and other suitable sign-making materials.
Possible applications include acrylic letters, dimensional signs, advertising displays and customized decorative products.

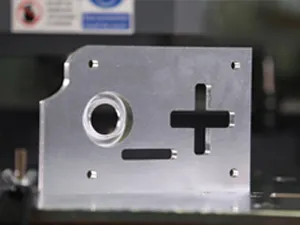

Light Aluminum Processing
Light aluminum processing may be possible when suitable cutting tools, controlled machining parameters and an appropriate cooling or lubrication solution are used.
Customers planning to process aluminum should provide the material type, thickness, finished product and expected machining requirements before ordering so that the machine configuration can be evaluated.
Who Is This ATC CNC Router Suitable For?
Furniture Workshops
Suitable for workshops producing furniture panels, cabinet components, customized wooden products and decorative parts.
Cabinet Door Manufacturers
Suitable for cabinet door production that requires profiling, grooving, engraving, drilling and cutting with different tools.
Panel Furniture Factories
Suitable for factories processing MDF, plywood and other suitable panel materials for furniture and interior applications.
Sign-Making Companies
Suitable for businesses processing wood, acrylic, PVC and other suitable sign-making materials.
Businesses Upgrading from Manual Tool Changing
Suitable for users who want to reduce manual tool-changing interruptions during multi-process CNC production.
Applications and Finished Products
Furniture Panels
Cabinet panels, shelves, table components, wardrobes, customized furniture parts and decorative panel products.
Cabinet Doors
Profiled cabinet doors, grooved door panels, engraved doors and customized decorative door components.
Acrylic letters, PVC signs, dimensional signs, display components and other suitable advertising materials.
The finished product quality depends on the material, cutting tool, machining program and selected processing parameters.
Optional Configurations
Optional equipment should be selected according to the processed material, material dimensions, workshop conditions and production requirements.
Optional Configuration
Selection Basis
Working Size
1300 × 2500 mm, 1500 × 3000 mm, 2000 × 3000 mm, 2000 × 4000 mm and custom sizes
Vacuum Pump Options
Material permeability, panel size and required holding force
Dust Collection System
Woodworking dust and chip collection requirements
Cooling or Lubrication System
Light aluminum processing requirements
CAM Software Options
Compatibility with the confirmed controller and post-processor
Alternative Machine Components
Subject to the confirmed application and quotation
Optional equipment is not included in the standard machine configuration unless it is clearly listed in the confirmed quotation.
The standard machine includes an 8-position linear automatic tool changer. Any alternative tool magazine capacity must be confirmed separately.
Machine Configuration and Order Confirmation
Before production, the machine model, working area, spindle, tool magazine, controller, drive system, working voltage and optional equipment should be confirmed in writing.
Customers should provide their material, material thickness, finished product, required working size and production requirements before ordering.
The final quotation should clearly identify the standard configuration, selected options, voltage, warranty period and service scope.
Information Required Before Configuration
Processed material
Maximum material thickness
Required working size
Finished product or application
Expected production requirements
Destination country
Local voltage, frequency and phase
Required optional equipment
Warranty and Technical Support
The BCM1530 CA Series is supplied with a 2-year warranty.
The detailed warranty coverage, service conditions, parts terms and customer responsibilities should be listed in the final quotation or sales agreement.
Customers can provide material and sample information before ordering so that the required cutting tools, machining requirements and machine configuration can be discussed.
Frequently Asked Questions
1.Does the BCM1530 CA Series include an automatic tool changer?
Yes. The standard configuration includes an 8-position linear automatic tool changer with an ISO30 tool-holding system.
2.What working sizes are available?
The BCM1530 CA shown on this page has a working area of 1500 × 3000 × 200 mm. Other commonly requested sizes include 1300 × 2500 mm, 2000 × 3000 mm and 2000 × 4000 mm. Custom working sizes can also be discussed according to the application and material dimensions.
3.What materials can the machine process?
The machine is mainly designed for wood, MDF, plywood, acrylic, PVC and similar suitable materials.
The actual processing capability depends on the material type, material thickness, cutting tool, machining parameters and confirmed machine configuration.
4.Can the machine process light aluminum?
Light aluminum processing may be possible with suitable cutting tools, controlled machining parameters and an appropriate cooling or lubrication configuration.
The aluminum type, thickness, finished product and expected machining requirements should be confirmed before ordering.
5.How should the vacuum pump be selected?
Vacuum pump selection depends on the material permeability, panel size, surface condition and required holding force.
The required pump configuration should be confirmed according to the customer’s application.
6.What information is required for a quotation?
Please provide the processed material, maximum thickness, required working size, finished product, expected production requirements, local voltage and destination country.
Customers Say – Don’t take our words as everything. Find out what customers say about our products and services they have purchased, owned or experienced.
7 reviews for BCM1530 CA Series 5×10 ft ATC CNC Router for Woodworking
I purchased my CNC machine from BCAM CNC about 5 years ago, and I can honestly say it has been one of the best equipment investments I have made for my business. The quality of their CNC machines is excellent, reliable, and built to last. After 5 years of daily business use, this was the first time I ever had a programming issue with my machine.
What impressed me the most was the level of support I received from Jason. Even while he was traveling internationally to Brazil and Panama, he even sent instructions on the machine while he was boarding a plane waiting to take off and told me that he will reach out when he lands in Panama )I’m sharing pictures of his flight to Panama from Brazil and gave me technical support ) he still took the time to provide me with outstanding technical support. He responded quickly, guided me through the issue, and helped get my machine back up and running so I could continue working and get my business back on track.
After 5 years, Jason treated me as if my machine was still under warranty, and they did not charge me a single penny for the support. That says a lot about the company, their values, and the way they take care of their customers.
I truly believe that if I had purchased this machine from many other companies, especially in the U.S., I probably would not have received this kind of technical support after the first year unless I was paying for a monthly service membership. BCAM CNC has proven that they stand behind their equipment and their customers long after the sale.
Because of the quality of the machine, the prompt service, and Jason’s exceptional support, I would absolutely continue buying equipment from BCAM CNC and highly recommend them to anyone looking for a reliable CNC machine and a company that truly supports its customers. And last but not least? When I asked him how much was for his service he said? Nothing, I’m supposed to give good technical support and this is why I get paid for!
1 of 1 found this review helpful
K
Rated 5 out of 5
kedar –
Industrial - very well built machine with great support
We have had an excellent experience with our BCAM CNC machines. The equipment is extremely reliable, well-built, and performs consistently in a production environment.
We purchased our first machine four years ago and added a second one three years ago. From the initial sales process through ongoing service and support, the experience has been outstanding.
Nick was very helpful during the sales process, and Jason has provided exceptional service support. Both have been fantastic to work with. Last year, while Jason was visiting the United States, he offered to stop by our facility to perform preventative maintenance at a very reasonable cost. His visit was incredibly valuable.
Jason is highly knowledgeable and a true subject-matter expert. He spent time with our operators, shared several techniques to improve efficiency, and helped streamline aspects of our workflow.
You can see examples of the work produced on these machines
Based on our experience, we plan to purchase a 5-axis machine from BCAM in the near future.
Best,
Kedar Gore
0 of 0 found this review helpful
I
Rated 5 out of 5
ilasersolution –
Reliable Performance with Great Support
Jason has been helping me a lot with the customized Woodworking CNC Machine, and the experience has been excellent. The machine itself is extremely solid and well-built, designed for heavy-duty, long-term use. Precision and stability are outstanding, especially considering the factory price. Between the machine’s performance and Jason’s helpful support, this has been a great investment. Highly recommended.
0 of 0 found this review helpful
C
Rated 5 out of 5
comercial –
Great machine
The machine offers stability and precision. The value for money is very good and the customer support from Bcam is great. We never had any major problems and the small issues have been resolved quickly and efficiently. Bcam is a valued partner, they really care about customer satisfaction. I strongly recommend Bcam and their products.
0 of 1 found this review helpful
E
Rated 5 out of 5
Emily Clarke –
Affordable industrial CNC router with excellent automation. The bit changes are seamless, and it maintains precision even on complex cutting and contouring tasks.
0 of 1 found this review helpful
A
Rated 5 out of 5
Aibek Toktogulov –
Excellent CNC router for professional use. The linear ATC works smoothly, and it handles furniture production, signage, and multi-material projects efficiently. Great value for the price.
1 of 1 found this review helpful
D
Rated 5 out of 5
Dmitry Ivanov –
High-quality and reliable CNC router. Setup was straightforward, and the machine delivers consistent results. Perfect for woodworking, cabinet making, and multi-material projects.
We’ve been running the BCAMCNC edge bander in our mid-sized cabinet shop for about 5 months now. It’s not perfect – we had to tweak the glue temperature settings for thicker ABS edges – but once dialed in, it’s been solid. The automatic corner trimming works about 90% of the time (still needs occasional manual touch-ups on tricky curved pieces). What really stands out is the build quality – no loose components after daily 8-hour shifts like we experienced with our previous machine. For the price point, it’s been a reliable workhorse that’s cut our edge banding time by nearly half
E
Erik
5 out of 5
Reviewed in Sweden
on
The BCAM CNC Router has completely elevated our custom furniture production! Its precision carving brings even the most intricate oak and MDF designs to life with flawless detail, while the industrial-grade vacuum table ensures razor-thin panels stay perfectly stable during machining. The integrated dust extraction system has revolutionized our workspace – no more post-job cleanups or airborne particles. Whether we’re crafting high-end cabinetry or delicate decorative inlays, this machine delivers museum-quality results every time. An absolute game-changer for woodshops serious about quality and efficiency!
S
Stephenbecerra
5 out of 5
Reviewed in Canada
on
I wanted a CNC router for woodworking, as well as a drag knife for cutting foam, cardboard, rubber, and some sealing materials, so I ordered the BCM2030C and so I did not have to purchase two machines. So far everything is running as expected. The only issue was the controller switching, so I reached out to BCAMCNC tech support and they were responsive and did an excellent job of diagnosing and debugging the software in a timely fashion.
A
Anika
5 out of 5
Reviewed in Netherlands
on
The robotic arms in our production line handle 4’x8′ MDF sheets with flawless precision, enabling seamless material handling around the clock. Thanks to this automation, our night shift now operates entirely unattended—boosting productivity while reducing labor costs. The 5+4 drilling head configuration has revolutionized our cabinet manufacturing process, delivering unmatched speed and accuracy for complex drilling patterns. BCAMCNC went above and beyond by customizing their CNC software to integrate perfectly with our ERP system, ensuring real-time data synchronization and streamlined workflow management.
C
Carlos
Reviewed in Brazil
on
Absolutely outstanding work! We partnered with BCAMCNC for a complex 5-axis CNC router mold, and the results exceeded our expectations. The precision, surface finish, and attention to detail were flawless—exactly what we needed for our high-tolerance production. The team was responsive, professional, and delivered ahead of schedule. Highly recommend for anyone needing top-tier CNC machining!
D
Diego
5 out of 5
Reviewed in Mexico
on
The BCM-1325SA manual-change CNC router delivers exceptional efficiency for custom furniture joints, proving that advanced automation isn’t always necessary. Its ergonomic tool rack is positioned right beside the workspace, eliminating wasted movement and maximizing productivity. Despite costing $8K less than auto-change models, it maintains impressive ±0.2mm accuracy—ideal for precision woodworking. This balance of cost savings, thoughtful design, and reliability makes it a standout choice for small to mid-scale furniture production.
M
Maria
5 out of 5
Reviewed in Germany
on
Upgraded from a 2020 model to the BCM-2030D. The dual-spindle design lets us engrave and cut simultaneously. Dust extraction ports are perfectly placed. Our woodworking shop’s productivity jumped by 40%. BCAMCNC’s 24/7 support is a lifesaver!
H
Hiroshi
5 out of 5
Reviewed in Australia
on
Perfect for sign-making! The 15kW spindle powers through 50mm acrylic without chipping. The auto-calibration feature is genius and the 12-tool magazine handles all our bits. BCAMCNC shipped it with spare parts (belts, nozzles) which was a nice touch.
R
Raj P.
5 out of 5
Reviewed in India
on
As a first-time CNC user, I was initially daunted by the learning curve—but the BCAMCNC ATC CNC Router quickly proved to be the ideal machine to start my journey. Its heavy-duty construction delivers exceptional rigidity, far surpassing standard CNC routers, which translates to cleaner cuts and smoother operation, especially in metalwork.
L
Liam O.
5 out of 5
Reviewed in Türkiye
on
Our workshop specializes in carbon steel and aluminum fabrication, and the BCAMCNC fiber laser cutter has exceeded expectations! It delivers razor-sharp cuts on 1-20mm carbon steel and 0.5-15mm aluminum with impressive speed (±0.05mm precision). The intuitive interface reduced operator training time by 40%, while the sealed cutting head minimizes oxidation on aluminum. Maintenance is surprisingly simple – just weekly lens cleaning. After 6 months of heavy use, it remains our most reliable investment for aerospace-grade results.
7 reviews for BCM1530 CA Series 5×10 ft ATC CNC Router for Woodworking
isignsdsm –
Exceptional Quality and Outstanding Support
I purchased my CNC machine from BCAM CNC about 5 years ago, and I can honestly say it has been one of the best equipment investments I have made for my business. The quality of their CNC machines is excellent, reliable, and built to last. After 5 years of daily business use, this was the first time I ever had a programming issue with my machine.
What impressed me the most was the level of support I received from Jason. Even while he was traveling internationally to Brazil and Panama, he even sent instructions on the machine while he was boarding a plane waiting to take off and told me that he will reach out when he lands in Panama )I’m sharing pictures of his flight to Panama from Brazil and gave me technical support ) he still took the time to provide me with outstanding technical support. He responded quickly, guided me through the issue, and helped get my machine back up and running so I could continue working and get my business back on track.
After 5 years, Jason treated me as if my machine was still under warranty, and they did not charge me a single penny for the support. That says a lot about the company, their values, and the way they take care of their customers.
I truly believe that if I had purchased this machine from many other companies, especially in the U.S., I probably would not have received this kind of technical support after the first year unless I was paying for a monthly service membership. BCAM CNC has proven that they stand behind their equipment and their customers long after the sale.
Because of the quality of the machine, the prompt service, and Jason’s exceptional support, I would absolutely continue buying equipment from BCAM CNC and highly recommend them to anyone looking for a reliable CNC machine and a company that truly supports its customers. And last but not least? When I asked him how much was for his service he said? Nothing, I’m supposed to give good technical support and this is why I get paid for!
kedar –
Industrial - very well built machine with great support
We have had an excellent experience with our BCAM CNC machines. The equipment is extremely reliable, well-built, and performs consistently in a production environment.
We purchased our first machine four years ago and added a second one three years ago. From the initial sales process through ongoing service and support, the experience has been outstanding.
Nick was very helpful during the sales process, and Jason has provided exceptional service support. Both have been fantastic to work with. Last year, while Jason was visiting the United States, he offered to stop by our facility to perform preventative maintenance at a very reasonable cost. His visit was incredibly valuable.
Jason is highly knowledgeable and a true subject-matter expert. He spent time with our operators, shared several techniques to improve efficiency, and helped streamline aspects of our workflow.
You can see examples of the work produced on these machines
Based on our experience, we plan to purchase a 5-axis machine from BCAM in the near future.
Best,
Kedar Gore
ilasersolution –
Reliable Performance with Great Support
Jason has been helping me a lot with the customized Woodworking CNC Machine, and the experience has been excellent. The machine itself is extremely solid and well-built, designed for heavy-duty, long-term use. Precision and stability are outstanding, especially considering the factory price. Between the machine’s performance and Jason’s helpful support, this has been a great investment. Highly recommended.
comercial –
Great machine
The machine offers stability and precision. The value for money is very good and the customer support from Bcam is great. We never had any major problems and the small issues have been resolved quickly and efficiently. Bcam is a valued partner, they really care about customer satisfaction. I strongly recommend Bcam and their products.
Emily Clarke –

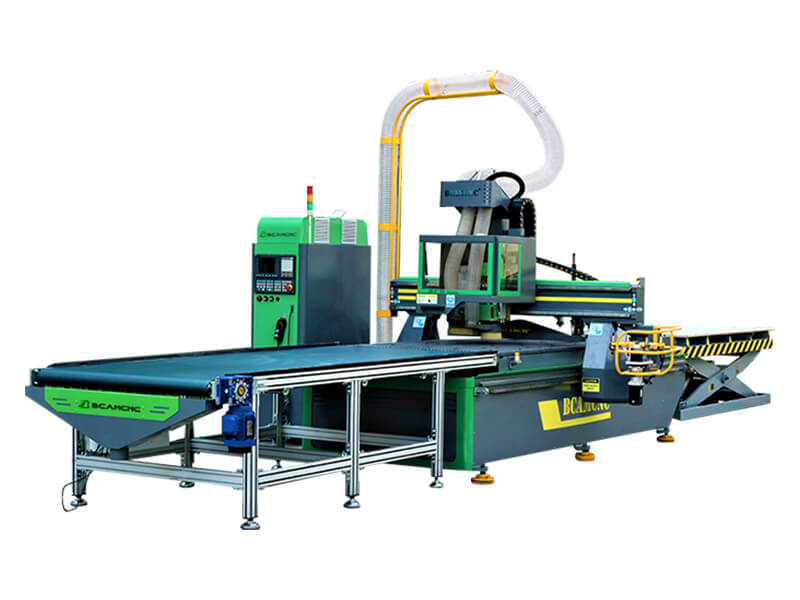

Affordable industrial CNC router with excellent automation. The bit changes are seamless, and it maintains precision even on complex cutting and contouring tasks.
Aibek Toktogulov –
Excellent CNC router for professional use. The linear ATC works smoothly, and it handles furniture production, signage, and multi-material projects efficiently. Great value for the price.
Dmitry Ivanov –
High-quality and reliable CNC router. Setup was straightforward, and the machine delivers consistent results. Perfect for woodworking, cabinet making, and multi-material projects.
