Models :  BCM 4 AXIS

Application :Art craft,wood furniture industry, advertising, die industry,

Leadtime : 20 working days

Certificate : CE ISO

Voltage :380V

Customized :available

Warranty : 3 Years

Supply Ability : 30 sets /month

Oversea Warehouse&Office : Dubai , Gernmany ,United Kingdom

E-mail: admin@bcamcnc.com
ACCESSORY
  • Advantage
  • Details
  • Specifications

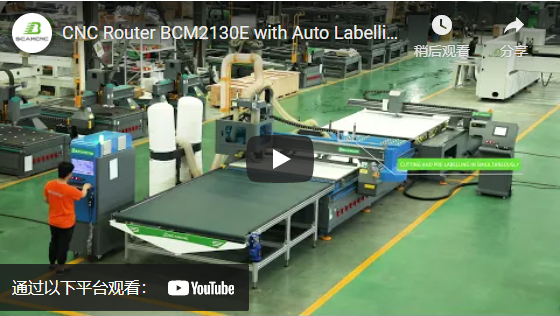

  • Videos
  • Foot print
  • Download

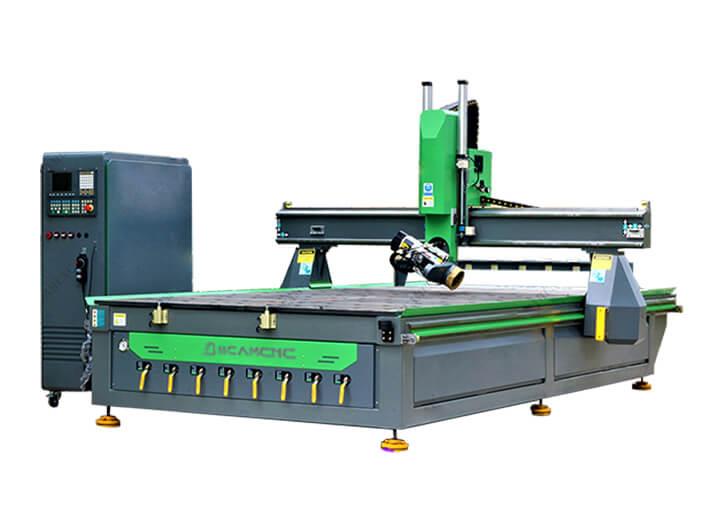

1. The BCM-4AXIS milling machine has all the same axes of the 3-axis milling machine and the additional A-axis, which rotates the main shaft about the X-axis by up to 180 degrees during the cutting process.


The rotating shaft can cut on multiple sides of the workpiece without resetting, while the three-axis milling machine can only cut one side of the same workpiece at a time. The 4-axis CNC milling machine is the preferred method for advanced, complex cutting and engraving, such as those often seen in furniture, musical instruments, cabinets, etc.

2.BCAM 4 axis CNC Router is designed to ensure high performance and productivity with low maintenance requirement.
3.This machine has a steel framework with gantry support and ISO30 9kw frequency spindle.
4.The structure of the machine is rigid to provide enough strength for high-speed machining at a pace of +- 135° on C axis suiting different production requirement
5.The machine is the best option for different woodworking project like European style furniture, such as soffit, crown molding, wall frame, stair jamb, column, balustrade, automotive interior&exterior, mold, arts&crafts, chair, 3D work etc. It can work on various materials like plastics, metal, wood, resins and create beautiful designs.

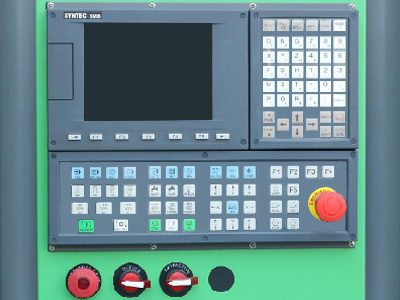

1.The control system of BCM2030C-4AXIS adopts the more advanced Taiwan Syntec system, which is widely acclaimed internationally and can perfectly control 3axis, 4, 5, 6, 8axis. The Syntec system can work online and WiFi links, greatly increasing the intelligence of the device.

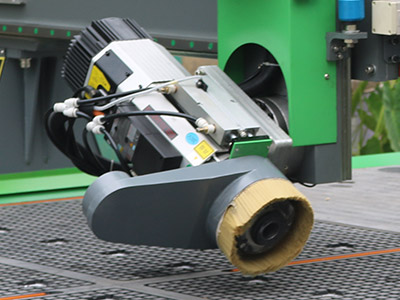

2.BCM-4AXIS has a spindle rotation angle of up to 270, making the BCM 4 axis more suitable for complex processes such as side punching.aps_adv00.jpg202008311727025994.jpg

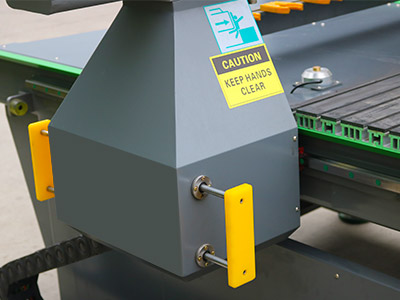

3.BCM-4AXIS series also has the unique safety protection system of BCAM products, providing external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.



4.BCM-4AXIS series is a CMC company designed to automatically change the tool cnc router, this series will be more automated than  manual tool change series, eliminating the cumbersome manual tool change, while making cnc router engraving more precise.aps_adv00.jpg202104280919355436.jpg

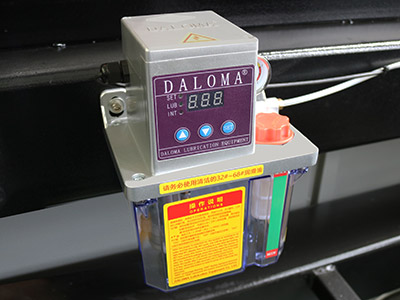

Auto lubricating system, one touch can finish periodic maintenance easily.




BCAM series has the unique safety protection system of BCAM products, and provides external emergency stop function for equipment users. This function can effectively protect the personal safety of the equipment users, meet the European safety CE standards, and is very popular among users.aps_adv00.jpg2452424.jpg

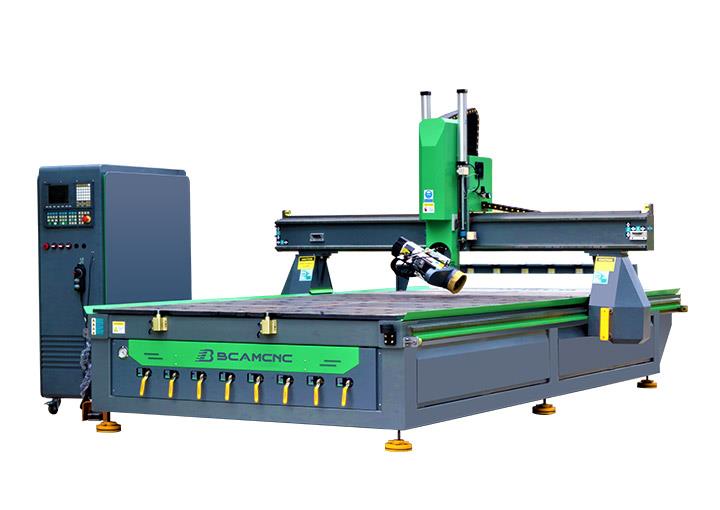

BCM- 4 axis CNC router with Japan servo motor and drivers

●  Working area: 2000*3000*200mm|4′*8′
●  CE standard
●   10mm Heavy duty body
●  Active safety system
●  Helical rack and pinion drivers on X and Y axis, Z axis Taiwan TBI ball screw transmission
●  25mm Heavy-duty Hiwin HG Series linear bearing
●  Vacuum table+T-solts
●  Taiwan Syntec Control system  (4 Aixs )
●  Japan Yaskawa servo motor and drivers system
●  Delta brand VFD-B variable frenquency drive

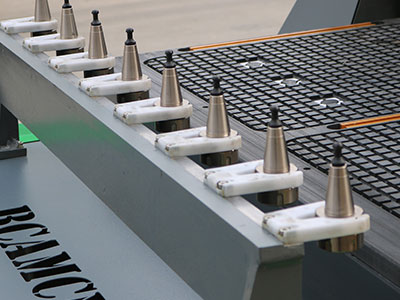

●  10 Position Automatic Tool Changer (options: 12 position)
●  TOOL CONE HOLDER-FOR EAST BIT CHANGING

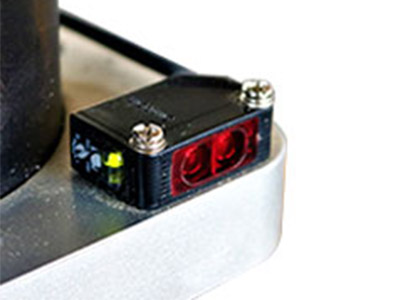

●  Solid State limit switches
●  3 Years Warranty
Parameters
Standard Specifications BCM2030C  4 axis CNC router
X,Y,Z Working Area

1300*2500*200mm

1500*3000*200mm

2000*3000*200mm

2000*4000*200mm

2000*6000*200mm

Z axis Optional 400mm ,600mm,800mm,1000m

Spindle Power
9kw Italy HSD air coolingspindle
X,Y,Z Traveling Positioning Accuracy
zff0h.png0.01/2000mm
Table Surface
Vacuum table+Intergrated T-solt table clamping System
X,Y,Z Rail and Trasmission
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw
Max. Rapid Travel Rate
80m/min
Max. Working Speed
60m/min
Cutting thickness
According materials
Spindle Speed
6000-24000RPM
Drive Motors
Japanese Yaskawa Servo Drive System
Working Voltage
AC380v/50HZ/3 phase
Command Language
G Code
Operating System
Taiwan Syntec 6MB control system
Interface
USB
Software Compatibility
Option:BCAMPRO/VCarve/VCarve Pro/ArtCAM/UCANCAM,etc.
Running Environment
Temperature: 0℃~45℃ Relative Humidity: 5%~75%



What materials can a CNC Router process?
A BCAM CNC router can machine a lot of different materials.
Here listed just a few materials that can be machined 2D or 3D:
►Metals / Non-ferrous metals
►Brass
►Aluminium
►Titanium
►Noble metals such as silver, gold
►Steel and cast steel
►Wood
►Multiplex
►Plastics
►Acrylic glass
►Granite and marble
Is important to note that some materials like Aluminum, require cooling during the actual milling operation. The heat generation means that chips can clog or glue the flutes of the milling machine and the milling tool breaks. Suitable coolants and lubricants can be found in the range of most CNC milling machine manufacturers.
What criteria are decisive when buying a BCAM CNC Router?
If you have decided to buy a BCAM CNC Mill to facilitate some work or to make special work possible, immediately one question comes to mind: “What do I have to consider when buying a CNC Router?”
►The size
Before I search for a suitable manufacturer, I should have a good idea of in which size I want to edit the desired material. Because the maximum traveldictates the maximum size of my workpiece. Do I perhaps prefer to process larger workpieces? Then I should observe the maximum travel of the selected machine.
►The motor and its performance
Furthermore is crucial which materials I would like to process because this depends on the required performance of the milling spindle. Soft materials such as wood consume
significantly less drive power than hard metals such as steel or cast steel. Here a competent milling machine manufacturers will be happy to advise you.
►Hardness and toughness of the material
Also concerning the torsional rigidity of the machine, the material to be processed is crucial. Soft materials will demand the milling machine other than hard materials, such as aluminium and steel. The harder a material is, the stiffer the CNC Router should be built. Only in this way a high accuracy in hard materials, especially metals, are guaranteed.
►Precision
A CNC Router Machine should be as well adapted to the material to be machined as possible. Someone who workes mainly wood should get a one-on tailored CNC machine. The more accurately the machine fits the demands of the material, the more accurate the milling results.
With these four questions I quickly find out which CNC Router is suitable for my needs:
1.What size are my workpieces to be processed?
2.What engine power do I need for my hard / soft material?
3.How hard are the materials to be processed concerning the required torsional stiffness of the machine?
4.How exactly is the selected CNC Router adapted to my desired materials / workpieces?
